P0112-Intake Air Temperature Sensor Circuit Low: Notes

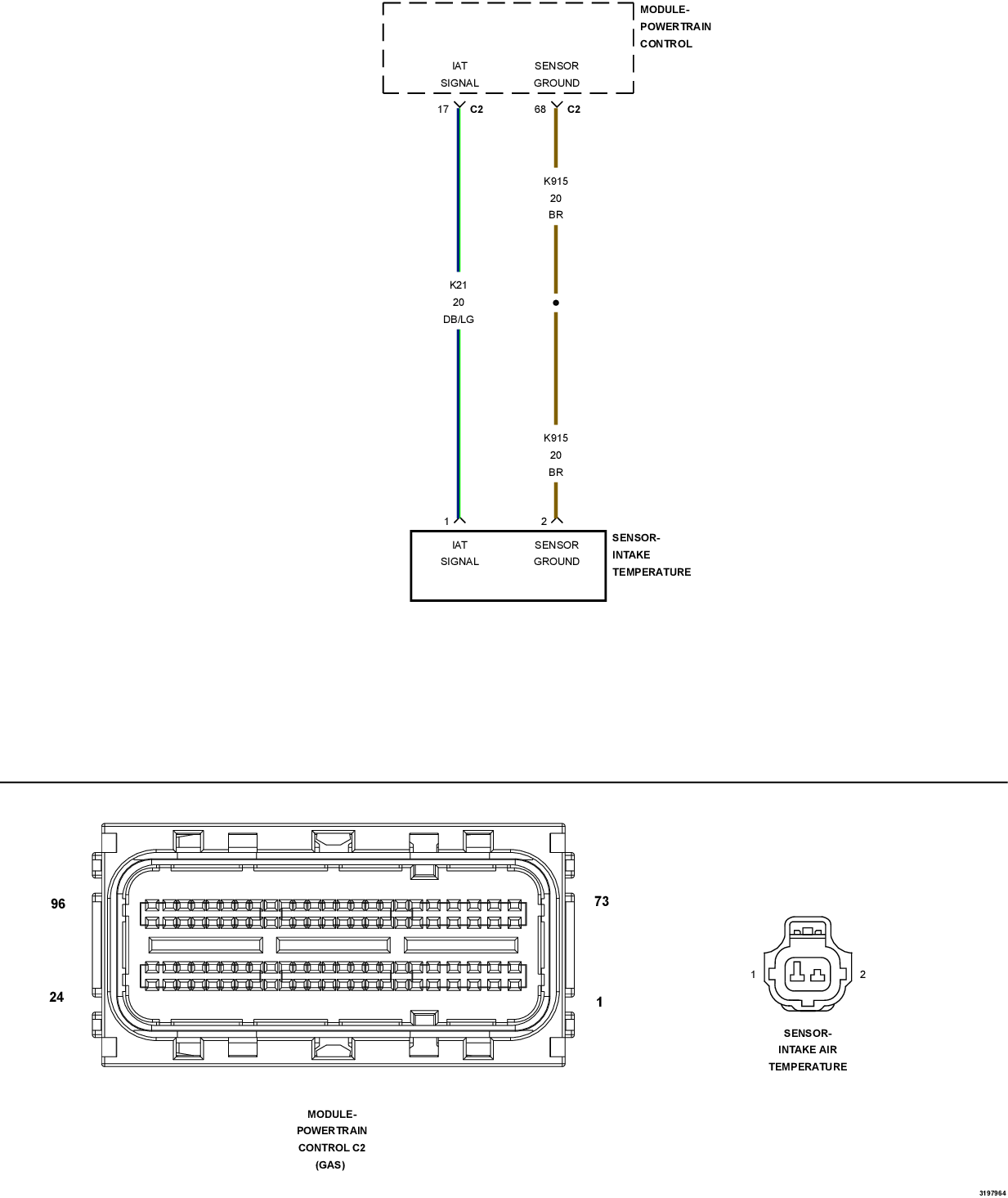

Fig 1: Intake Air Temperature Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
