B1CDD-Passenger Occupant Detector Circuit Open: Notes

NOTE:

The ORC module can not recognize the difference between a short to voltage (High) fault and a open fault. please use the B1CDC Passenger Occupant Detector Circuit High diagnostic procedure which will also cover the Open fault diagnostics. Refer to DIAGNOSIS AND TESTING .

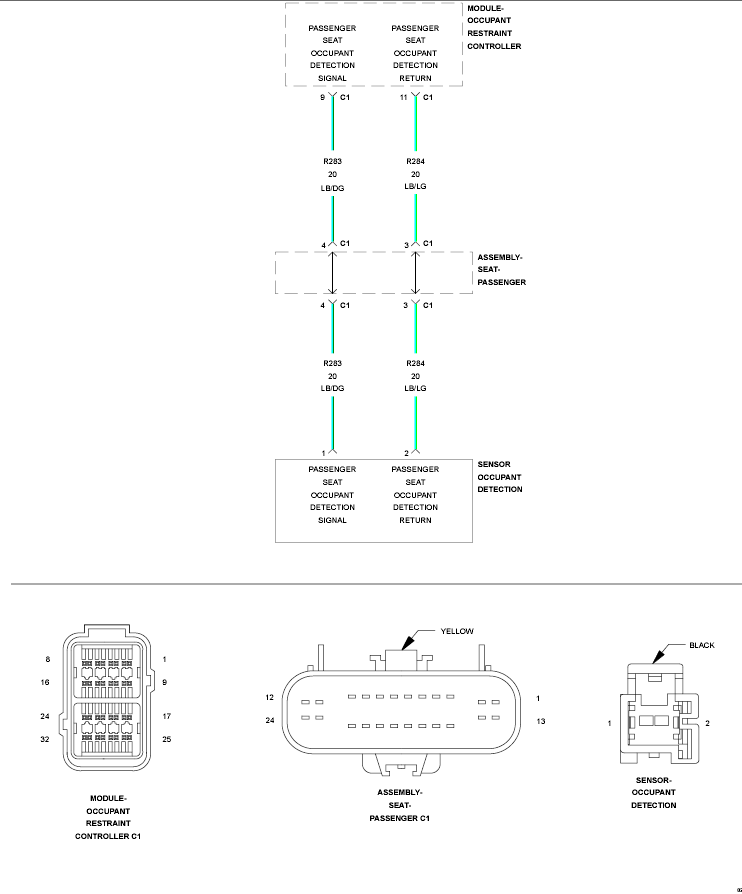

Fig 1: Passenger Occupant Detector Wiring Diagram
GC0151585Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
