B1C14-Driver Active Headrest Control Circuit Open: Notes

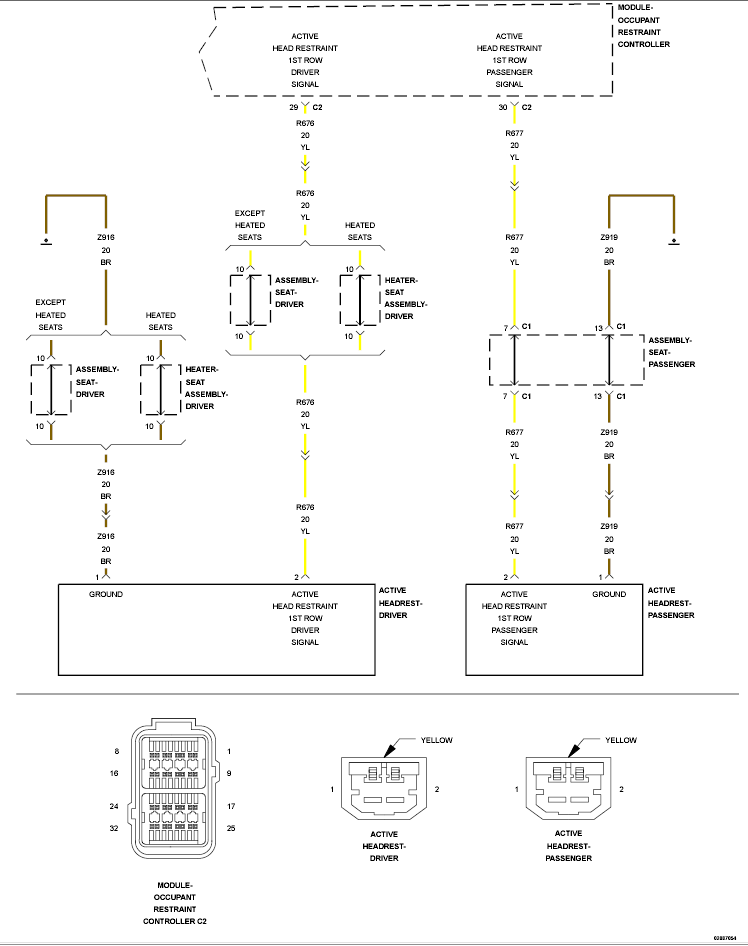

Fig 1: Driver Active Headrest Control Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
