No Response From Pcm (Powertrain Control Module) (NGC): Notes
WARNING: This page is about a different car, the 2011 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
3.6L

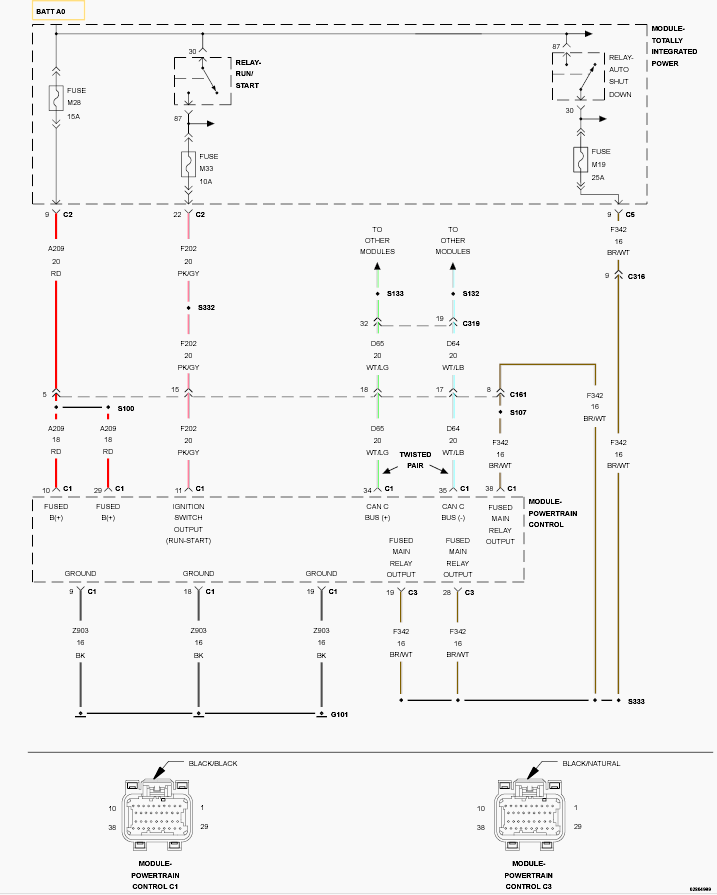

Fig 1: Powertrain Control Module Wiring Diagram - (NGC)
Courtesy of CHRYSLER LLC
5.7L
Fig 2: Powertrain Control Module Wiring Diagram - (NGC)
Courtesy of CHRYSLER LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
