No Response From PEM (Passive Entry Module): Notes
WARNING: This page is about a different car, the 2011 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

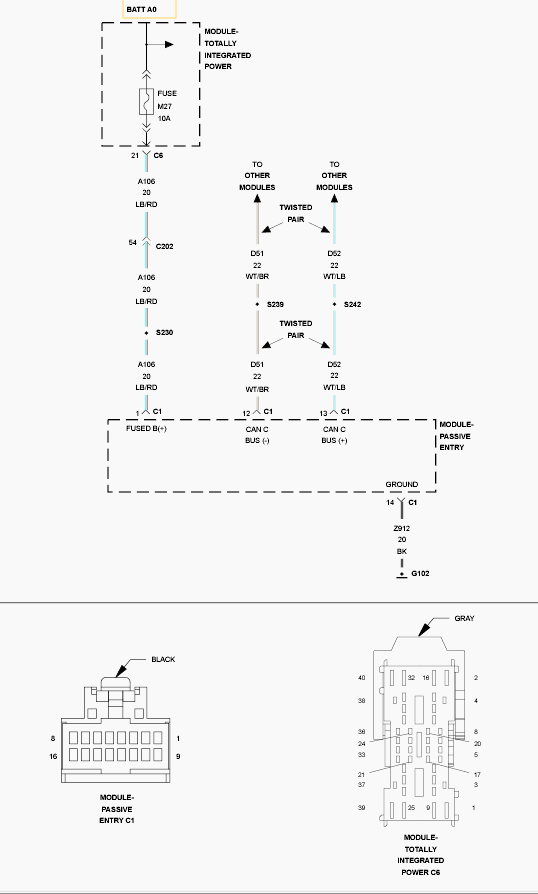

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
NOTE:
The Keyless Go Security Module feature is a function of the Passive Entry Module (PEM). The diagnostic procedures for the Keyless Go Security Module are performed on the PEM.
