SWITCH, Electronic Stability Program (ESP): Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

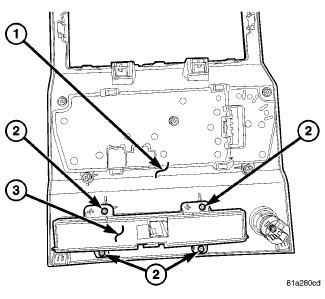

Fig 1: SWITCH BANK REMOVAL
GC0085885Courtesy of CHRYSLER LLC
NOTE: There are different accessory switch banks available based on the option content of the vehicle. Ensure the switch pod being installed matches the vehicle options.
  1. Position the accessory switch bank (3) onto the back of the instrument panel center bezel (1).
  2. Install the four screws (2) that secure the accessory switch bank to the center bezel. Tighten the screws to 2 N.m (17 in. lbs.).
  3. Install the center bezel onto the instrument panel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Installation .
  4. Connect the battery negative cable.
  5. Verify esp system operation.
