Engine Block: Crankshaft: Installation: Installation

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

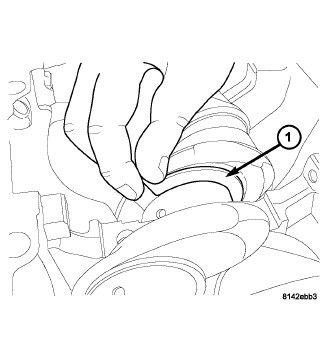

Fig 1: Removing/Installing Thrust Washer
GC0092132Courtesy of CHRYSLER GROUP, LLC
  1. Select the proper main bearings. Refer to Engine/Engine Block/BEARING(S), Crankshaft - Standard Procedure .
  2. Install main bearings in block and caps, and lubricate bearings.
  3. Position the crankshaft into the cylinder block.
  4. Install the thrust washers (1).

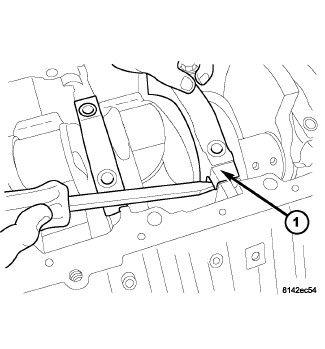

    Fig 2: Removing/Installing Main Cap
    GC0081774Courtesy of CHRYSLER GROUP, LLC
    1 - MAIN CAP

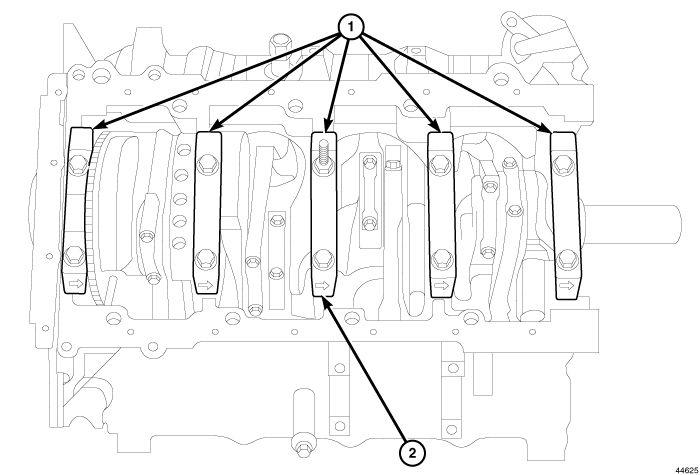

    Fig 3: Main Bearing Caps & Arrows
    GC0092128Courtesy of CHRYSLER GROUP, LLC
    1 - MAIN BEARING CAPS
    CAUTION:

    The overuse of oils on the threads may cause a Hydro-Lock condition at which may cause inaccurate readings. Incorrect torque values may occur.

    NOTE:

    The main cap crossbolts are torqued after final torque of the main cap bolts. Always use a new crossbolts.

  5. Clean and apply a light oil film to all cap bolts. Install all main bearing caps (1). Install all M12 cap bolts and alternately tighten in two steps using the following sequence.

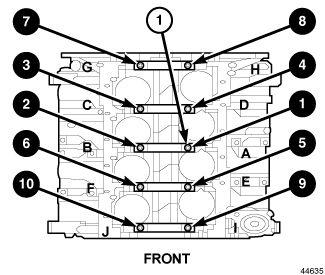

    Fig 4: Main Cap Bolt Tightening Sequence
    GC0095576Courtesy of CHRYSLER GROUP, LLC
  6. • Step 1 - 28 N.m (20 ft. lbs.).
  7. • Step 2 - Turn main cap bolts an additional 90°.
  8. Install the M8 crossbolts with attached washer/gasket. Starting with crossbolt A, tighten each crossbolt to 31 N.m (23 ft. lbs.).
  9. Repeat crossbolt tightening procedure.
  10. Measure crankshaft end play. Refer to Engine/Engine Block/BEARING(S), Crankshaft - Standard Procedure .

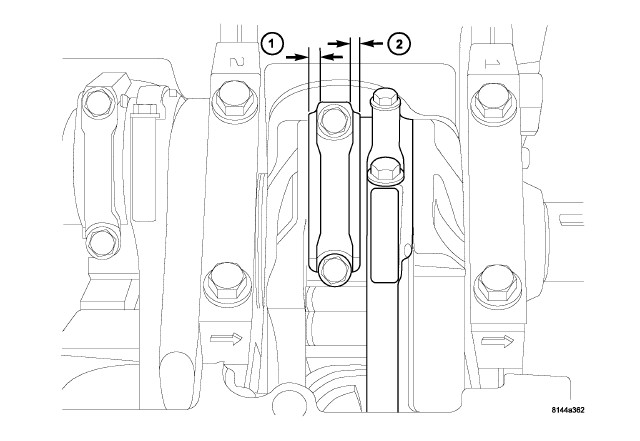

    Fig 5: Connecting Rod Proper Installation
    GC0081776Courtesy of CHRYSLER GROUP, LLC
  11. Position the connecting rods onto the crankshaft and install the rod bearing caps. Refer to ROD, PISTON AND CONNECTING, INSTALLATION, 5.7L .

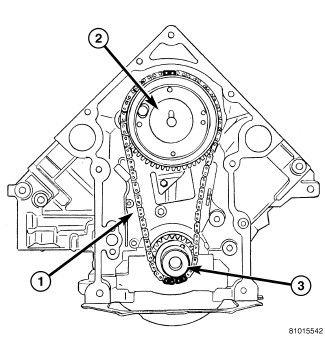

    Fig 6: Crankshaft Sprocket, Camshaft Sprocket & Chain Tensioner
    GC0095575Courtesy of CHRYSLER GROUP, LLC
    1 - Chain Tensioner
    2 - Camshaft Sprocket
    3 - Crankshaft Sprocket
  12. Install timing drive (2). Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION, 5.7L .

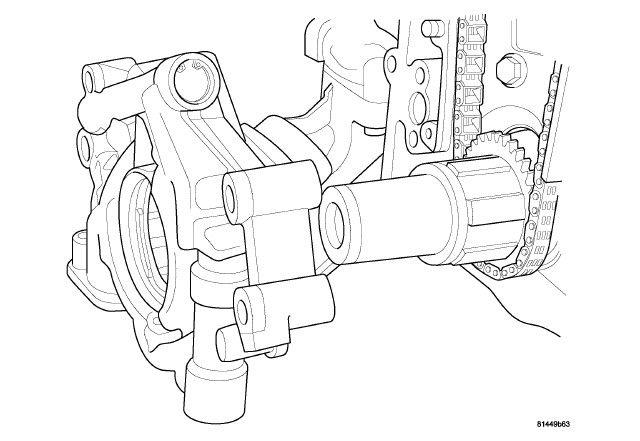

    Fig 7: Removing/Installing Oil Pump
    GC0095573Courtesy of CHRYSLER GROUP, LLC
  13. Install oil pump. Refer to PUMP, ENGINE OIL, INSTALLATION, 5.7L .
    Fig 8: Front Cover Slide Bushings
    GC0081770Courtesy of CHRYSLER GROUP, LLC
  14. Install the timing chain case cover (1). Refer to COVER(S), ENGINE TIMING, INSTALLATION, 5.7L .

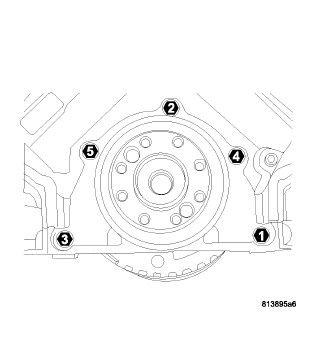

    Fig 9: Rear Seal Retainer Removal/Tightening Sequence
    GC0081773Courtesy of CHRYSLER GROUP, LLC
  15. Install the rear main seal and retainer. Refer to RETAINER, CRANKSHAFT REAR OIL SEAL, INSTALLATION, 5.7L .
  16. Install the windage tray/oil pan gasket.
  17. Install the oil pick up tube.
  18. Install the oil pan. Refer to PAN, OIL, INSTALLATION, 5.7L  and PAN, OIL, AWD, INSTALLATION, 5.7L .
    Fig 10: Installing Vibration Damper
    GC0144947Courtesy of CHRYSLER GROUP, LLC
  19. Install the vibration damper. Refer to DAMPER, VIBRATION, INSTALLATION, 5.7L .
  20. Install the engine. Refer to INSTALLATION, 5.7L .
  21. Connect the negative battery cable.
