Switch, Washer Fluid Level: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

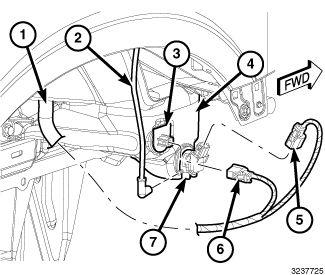

GC0144791Courtesy of CHRYSLER GROUP, LLC
NOTE:

The washer fluid level switch may be removed from the washer reservoir without removing the reservoir from the vehicle.

  1. Lubricate a new rubber grommet seal with clean washer fluid and install it into the washer fluid level switch mounting hole in the washer reservoir (4). Always use a new rubber grommet seal on the reservoir.
  2. Position the barbed nipple of the of the washer fluid level switch (3) to the rubber grommet seal in the reservoir.
  3. Using hand pressure, press firmly and evenly on the washer fluid level switch (3) until the barbed nipple is fully seated in the rubber grommet seal in the switch mounting hole of the reservoir.
  4. Connect the washer hose (2) to the barbed outlet nipple of the washer pump.
  5. Connect the headlight and dash wire harness (1) connector for the washer fluid level switch (6) to the connector receptacle for the switch.
  6. Install the fasteners that secure the right front wheel house splash shield to the inner fender panel and the front fascia. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
  7. Remove the support and lower the vehicle.
  8. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  9. Fill the washer reservoir with the washer fluid drained from the reservoir during the removal procedure.
