Sensor, Blind Spot: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Be certain that both the Left Blind Spot Sensor (LBSS) and the Right Blind Spot Sensor (RBSS) part numbers are at the same revision level. The Blind Spot Monitor (BSM) system will not function or will not function properly if the revision levels of the LBSS and the RBSS part numbers are not synchronized.

Courtesy of CHRYSLER GROUP, LLC

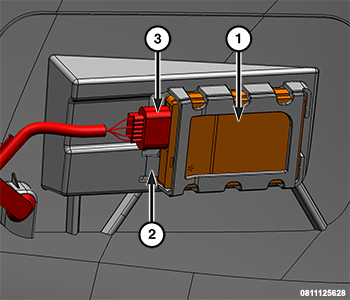

Position the Left Blind Spot Sensor (LBSS) or Right Blind Spot Sensor (RBSS) (1) to the blind spot sensor bracket.
Using hand pressure, press the LBSS or RBSS firmly and evenly into the mounting bracket until the latch tab (2) is fully engaged.
Reconnect the LBSS or RBSS wire harness connector (3).
Reinstall the rear bumper fascia onto the vehicle. Refer to FASCIA, REAR, INSTALLATION .
Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
