Solenoid, Multiple Displacement: Removal

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

multimedia:A supplement to the article is available.

NOTE:

If Multiple Displacement Solenoid (MDS) is removed correctly with no issue found, it can be re-used.

Disconnect and isolate the negative battery cable.
Remove the upper intake manifold. Refer to REMOVAL .
Cover the engine intake ports to prevent dirt and debris from entering the engine.

Courtesy of CHRYSLER GROUP, LLC

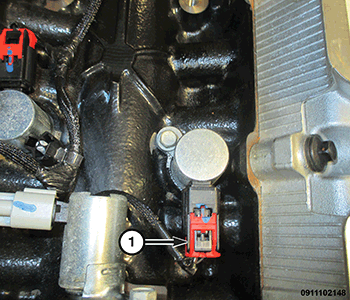

Remove the Multiple Displacement Solenoid (MDS) wire harness connector(s) (1).

Courtesy of CHRYSLER GROUP, LLC

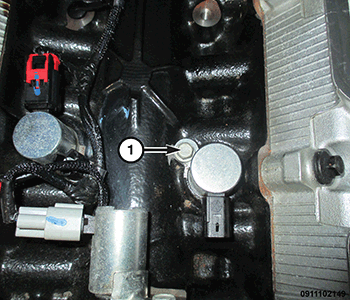

Remove the MDS solenoid retaining bolt(s) (1).
CAUTION:
Do not try to pry the solenoid out. This could lead to breakage and contamination of the lubrication system.

Courtesy of CHRYSLER GROUP, LLC

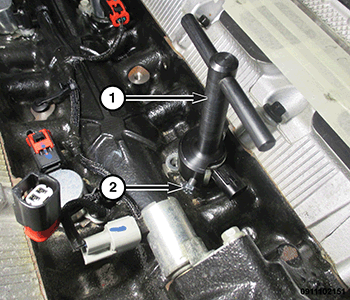

Install the (special tool #2028200090, Remover, MDS Solenoid) (1) and securely tighten the retaining screw (2).
Lightly tap on the top of the MDS solenoid removal tool with a rubber mallet or equivalent to break the seal.
Pull vertically and remove the MDS solenoid(s).
