Media Hub: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

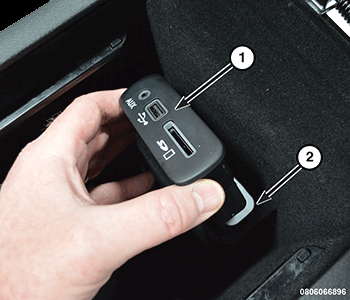

GC0170680Courtesy of CHRYSLER GROUP, LLC
  1. From inside the floor console rear storage bin, align and insert the media hub housing (1) through the floor console storage bin opening (2) until the integral latch features are fully engaged on the back of the storage bin.

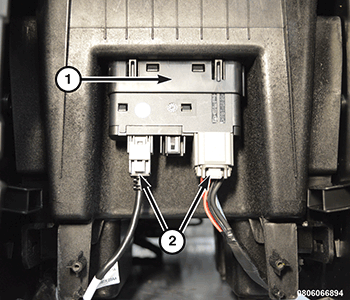

    GC0170768Courtesy of CHRYSLER GROUP, LLC
  2. From the underside of the floor console, connect the wire harness connectors (2) to the media hub (1).

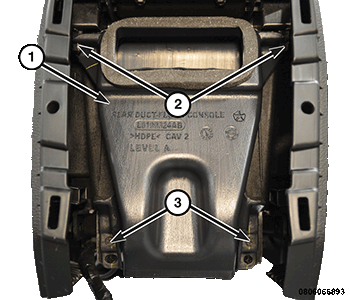

    GC0170789Courtesy of CHRYSLER GROUP, LLC
  3. Position the floor console rear duct to the two locating pins (2). Install the fasteners (3) for the floor console rear duct (1) and securely tighten the fasteners.

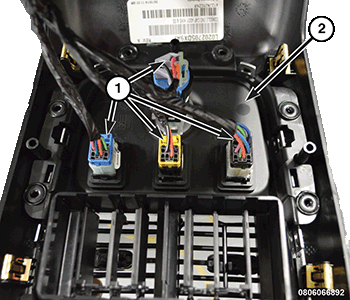

    GC0170754Courtesy of CHRYSLER GROUP, LLC
  4. Connect the wire harness connectors (1) to the switch/power outlet panel (2).

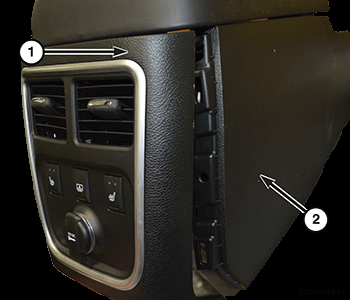

    GC0170805Courtesy of CHRYSLER GROUP, LLC
  5. Position the console end cap (1) and push the retainers into the floor console (2).
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
