Camera, Rear: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

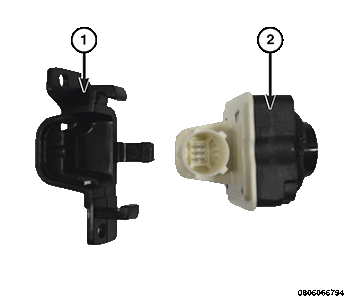

GC0170855Courtesy of CHRYSLER GROUP, LLC
  1. Combine the Rear View Camera (RVC) (2) with the mounting bracket (1).

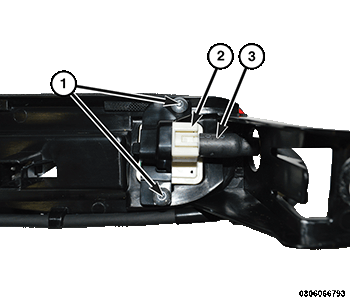

    GC0170874Courtesy of CHRYSLER GROUP, LLC
  2. Position the RVC (2) and mounting bracket to the Center High Mounted Stop Lamp (CHMSL) and install the fasteners for the RVC and mounting bracket (1). Securely tighten the fasteners.
  3. Connect the jumper wire harness connector (3) to the RVC (2).
  4. Install the CHMSL in the decklid. Refer to LAMP, CENTER HIGH MOUNTED STOP, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
