No Response From Acc (Adaptive Cruise Control) Module: Notes

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

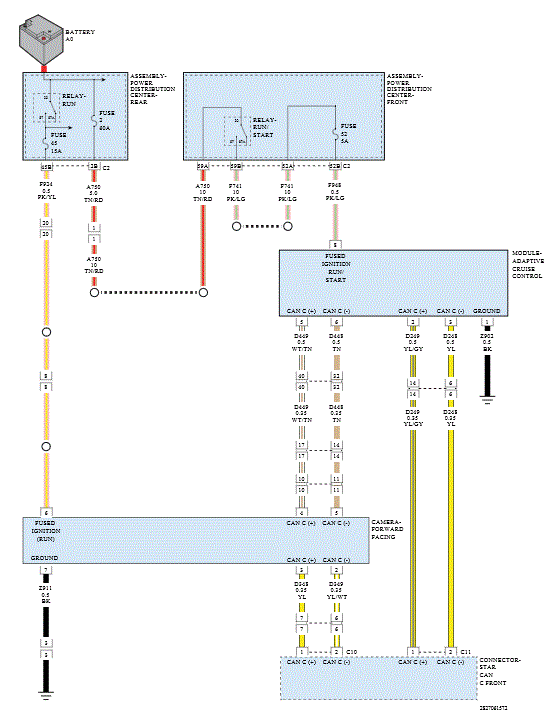

Fig 1: Adaptive Cruise Control Module & Forward Facing Camera Module Circuit Diagram
GC0168280Courtesy of CHRYSLER GROUP, LLC
