B1E9B-13-Rear Left Heater Control Circuit - Circuit Open: Notes
WARNING: This page is about a different car, the 2015 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.

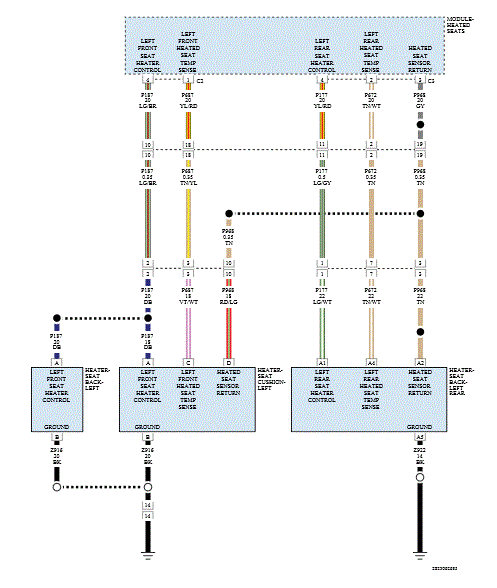

Fig 1: Left Front & Rear Heater Control - Circuit Diagram
