Circuit Schematic

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

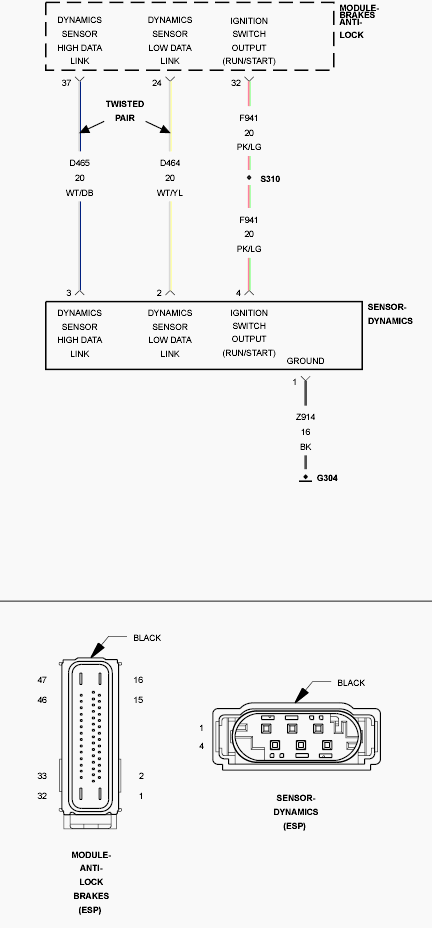

Fig 1: DYNAMICS SENSOR CIRCUIT SCHEMATIC
GC0101321Courtesy of CHRYSLER LLC
