Module Unlocked

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

NOTE:

If a NEW column lock module has been installed, a new Radio Frequency Hub (RF Hub) must also be installed.

NOTE:

Before attempting service, the ignition key must be inside the vehicle near or on the center console for the entire length of the procedure.

NOTE:

Before disconnecting the battery, check that the steering wheel can rotate back and forth verifying the steering column is unlocked.

NOTE:

When replacing any module(s) follow the "RF-Hub, BCM, PCM FOBik and ELV Replacement and Programming Order Guide" for replacement and programming order. Refer to STANDARD PROCEDURE .

NOTE:

For additional information programming the ELV/ESCL. Refer to STANDARD PROCEDURE .

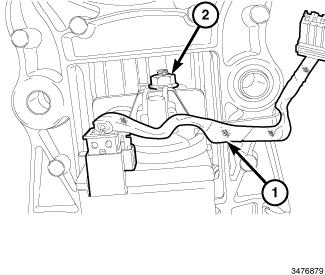

Fig 1: Steering Column Lock Module Retainer & Steering Column Lock Module Jumper Harness

Courtesy of CHRYSLER GROUP, LLC

Disconnect the Intelligent Battery Sensor (IBS) from the battery.
Remove the steering column. Refer to COLUMN, REMOVAL .
Remove the steering column lock module retainer (2).
Disconnect the steering column lock module jumper harness (1) from the steering column lock module.

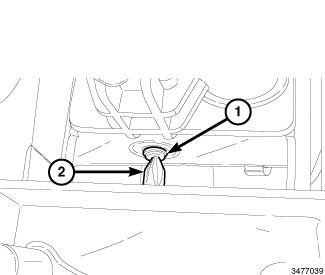

Fig 2: Screw Driver & Threaded Stud
Courtesy of CHRYSLER GROUP, LLC
Using a pocket screw driver (2) or equivalent, push in the threaded stud (1) and remove the steering column lock module.
