Continuously Variable Transmission (CVT) (Service Information): Clutch: Disassembly: Disassembly

Fig 1: Exploded View Of Forward Clutch

Courtesy of CHRYSLER GROUP, LLC

1 - Snap Ring	7 - Snap Ring
2 - Forward Clutch Drum	8 - Snap Ring
3 - Input Shaft	9 - Internal Gear
4 - Dish Plate	10 - Snap Ring
5 - Driven Plate	11 - Drive Plate
6 - Retaining Plate

NOTE:

Refer to the exploded views as necessary when performing the following steps.

Fig 2: Forward Clutch Snap Ring

Courtesy of CHRYSLER GROUP, LLC

1. Remove the snap ring (1) from the forward clutch drum using a flat head screwdriver.
   Fig 3: Internal Gear AT Forward Clutch

   Courtesy of CHRYSLER GROUP, LLC
2. Remove the internal gear (1) from the forward clutch drum.
   Fig 4: Snap Rings AT Forward Clutch Drum

   Courtesy of CHRYSLER GROUP, LLC
3. Remove the snap rings (1) from the forward clutch drum using a flat head screwdriver.
   Fig 5: Input Shaft Snap Ring

   Courtesy of CHRYSLER GROUP, LLC

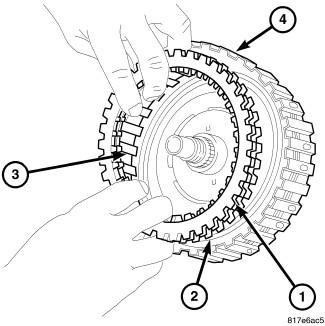

4. Remove the retaining plate (1), the drive and driven plates (3), and the dish plate (2) from the forward clutch drum (4).
   Fig 6: Input Shaft Snap Ring

   Courtesy of CHRYSLER GROUP, LLC
   CAUTION:

   Do not expand the snap ring beyond necessity and do not deform it.

5. Remove the snap ring (1), and remove the input shaft (2) from the forward clutch drum.
   Fig 7: Bottom Of Compressor

   Courtesy of CHRYSLER GROUP, LLC

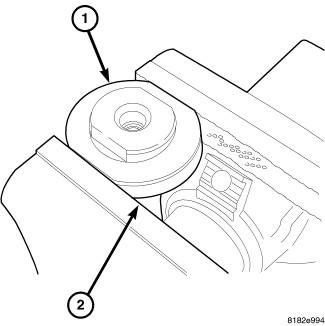

6. Place bottom of Compressor (special tool #8900A, Multi Use Spring Compressor) (1) in Vice (2).
   Fig 8: Drum Over Compressor Bottom

   Courtesy of CHRYSLER GROUP, LLC

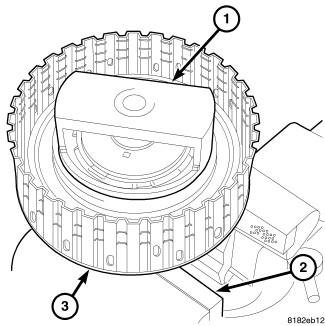

7. Place the drum (1) over Compressor bottom (special tool #8900A, Multi Use Spring Compressor) in Vice (2).
   Fig 9: Compressor Top

   Courtesy of CHRYSLER GROUP, LLC

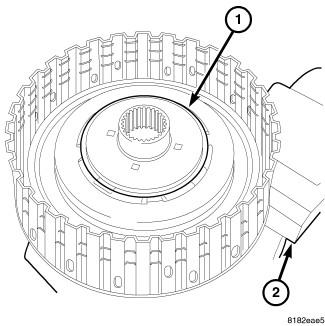

8. Place correct ring (1) that comes with Compressor (special tool #8900A, Multi Use Spring Compressor) in drum (3).
   Fig 10: Compress Drum

   Courtesy of CHRYSLER GROUP, LLC
9. Install threaded rod (1) that comes with Compressor (special tool #8900A, Multi Use Spring Compressor) (2) in drum (3).
10. Compress tool until the snap ring (4) can be removed.
    Fig 11: Compressor

    Courtesy of CHRYSLER GROUP, LLC
11. Use snap ring pliers or a small screw driver to remove the snap ring (3) from the piston (1).
    Fig 12: Snap Ring

    Courtesy of CHRYSLER GROUP, LLC
12. Remove snap ring.
    Fig 13: Piston

    Courtesy of CHRYSLER GROUP, LLC
13. Remove the piston (1) from the drum (3).
14. Remove the spring assembly (2) form the drum (3).
