DUCT, Instrument Panel, Center: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

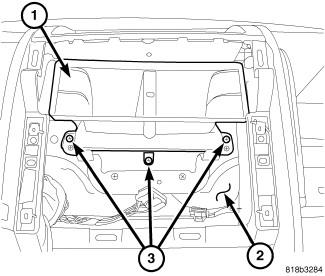

Fig 1: Removing/Installing Center Instrument Panel Duct
GC0086372Courtesy of CHRYSLER LLC
  1. Rotate the center instrument panel duct as necessary to position the duct into the instrument panel.
  2. Install the three screws (3) that secure the center instrument panel duct (1) to the instrument panel. Tighten the screws to 1.2 N.m (10 in. lbs.).
  3. Install the radio. Refer to Electrical/Audio and Video/RADIO - Installation .
  4. Reconnect the negative battery cable.
