Dual Pane Sunroof Or Sunshade
WARNING: This page is about a different car, the 2015 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not attempt to move or reposition the sunroof glass panel, the sunshade or the drive cables with the sunroof or sunshade motor and module unit removed. Damage to the vehicle, to the sunroof or personal injuries may result.
WARNING:
The Sunroof Panel Calibration procedure and the Sunroof Motor And Module Initialization procedure must be completed any time a sunroof or sunshade motor and module unit is replaced with a new component. Failure to perform these procedures may result in damage to the vehicle, to the sunroof, to the sunshade or in serious or fatal injuries.

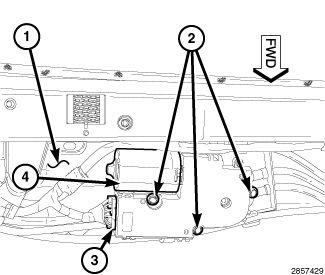

- Position the sunroof or sunshade motor and module unit (4) to the sunroof frame.
- Install and tighten the three screws (2) that secure the motor and module unit to the sunroof frame. Tighten the screws to 3.8 N.m (34 in. lbs.).
- Reconnect the sunroof wire harness connector (3) to the motor and module unit connector receptacle.
- Reinstall the headliner to the inner roof panel (1). Refer to HEADLINER, INSTALLATION .
- Reconnect the battery negative cable.
- If a previously initialized sunroof or sunshade motor and module unit has been reinstalled, perform the Dual Pane Sunroof Or Sunshade Override Position Calibration procedure. Refer to MOTOR, SUNROOF, STANDARD PROCEDURE .
- If a new sunroof or sunshade motor and module unit has been installed, perform the Sunroof Motor And Module Initialization procedure. Refer to MOTOR, SUNROOF, STANDARD PROCEDURE .
