Section 38 (Overhead Console (Service Information)): Description: Description
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

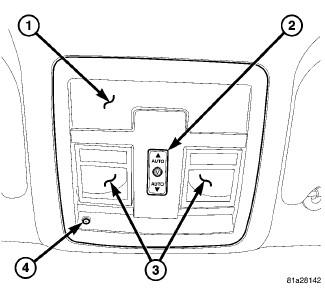

An overhead console (1) is standard factory-installed equipment on this model. All overhead consoles are equipped with two reading and courtesy lamps (3). On vehicles equipped with a power sunroof, the sunroof switch (2) is located between the two reading and courtesy lamps. On vehicles equipped with automatic climate control an infrared temperature sensor (4) is located on the front edge of the overhead console. The overhead console is mounted with three snap clips into a molded plastic retainer bracket located above the headliner to provide secure overhead console attachment.
