P0440-General EVAP System Failure: Notes

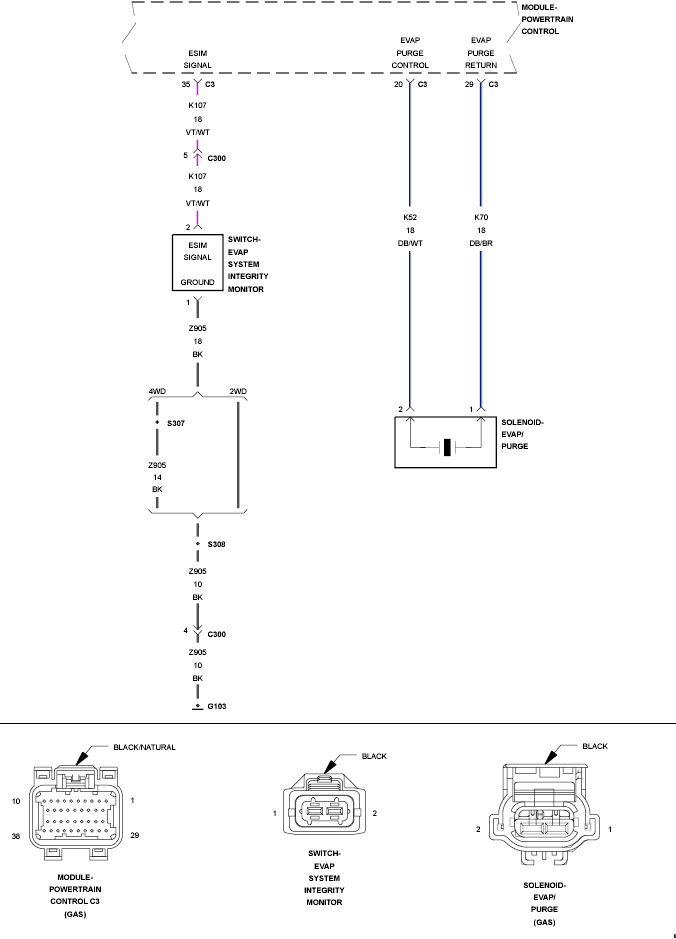

Fig 1: EVAP Purge Solenoid/ESIM Circuit Wiring Diagram
GC0131916Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
