P0116-Engine Coolant Temperature Sensor Circuit Performance: Notes

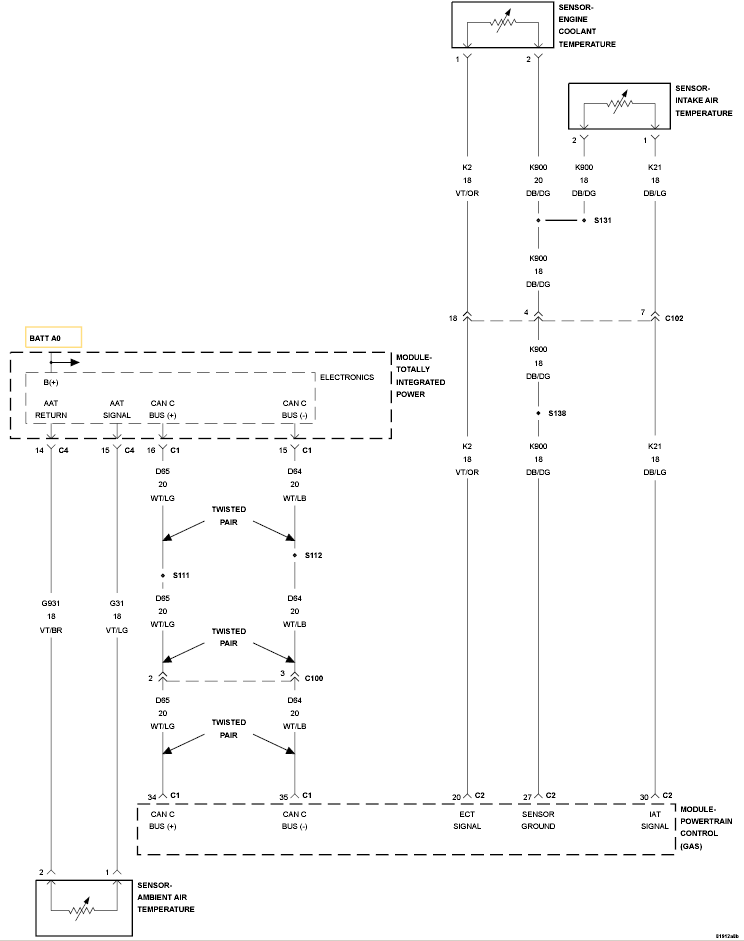

Fig 1: AAT, ECT & IAT Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
