VALVE, Exhaust Gas Recirculation (EGR) Airflow Control: Installation: Installation

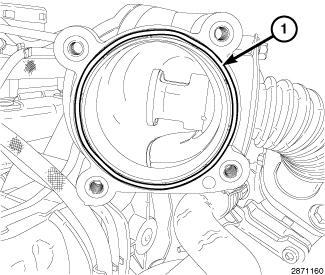

Fig 1: O-Ring Gasket

Courtesy of CHRYSLER LLC

1. Clean the gasket surface areas.
2. Install a new O-ring gasket (1).

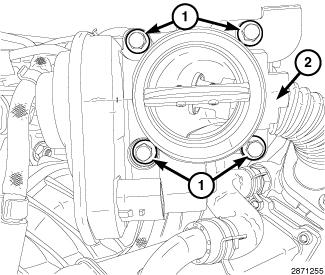

   Fig 2: Bolts & EGR Air Control Valve

   Courtesy of CHRYSLER LLC
3. Install EGR air control valve (2). Tighten bolts (1) to 11 N.m (97 in. lbs.).
4. Connect EGR air control valve harness.
5. Connect air tube to air control valve and securely tighten clamp.
6. Install the engine silencer (2) and securely tighten fasteners.
7. Install engine cover.
8. Connect the negative battery cable.
