SEAL, Output Flange: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

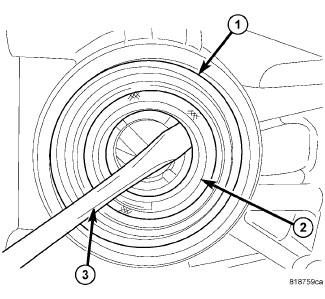

Fig 1: Remove Pinion Side Seal
GC0083904Courtesy of CHRYSLER LLC
  1. Raise the vehicle on a hoist.
  2. Remove right side halfshaft. Refer to Removal or Removal or Removal .
  3. Remove the pinion side seal (2).

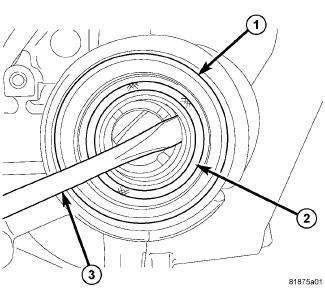

    Fig 2: Remove Ring Gear Side Seal
    GC0083905Courtesy of CHRYSLER LLC
  4. Remove left side halfshaft. Refer to Removal or Removal or Removal .
  5. Remove ring gear side seal.
