DAMPER, Vibration: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

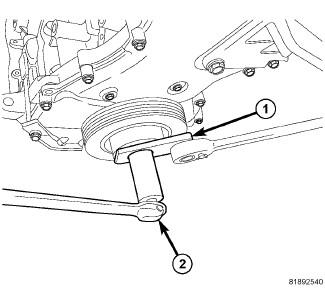

Fig 1: Damper Removal & Installation
GC0084841Courtesy of CHRYSLER LLC
  1. Remove accessory drive belts. Refer to BELT, Serpentine, Removal .
  2. Install Damper holder (special tool #9707, Holder, Vibration Damper) (1).
  3. Remove crankshaft damper bolt.
  4. Pull damper off crankshaft.
