Standard Procedure - Injector Connector

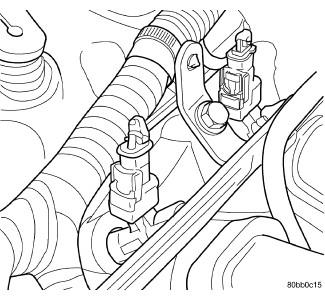

Fig 1: Fuel Injectors
GC0098889Courtesy of CHRYSLER LLC
  1. Disconnect electrical connectors at the fuel injectors.

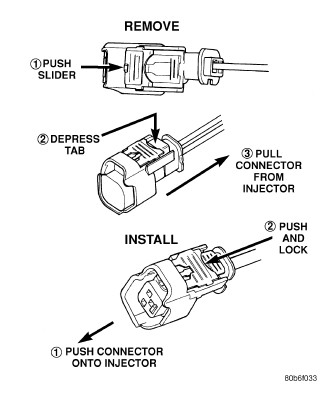

    Fig 2: Connecting Electrical Connectors
    GC0080396Courtesy of CHRYSLER LLC
  2. To remove connector pull the red colored slider away from injector (1). While pulling the slider, depress tab (2) and remove connector (3) from injector. The factory fuel injection wiring harness is numerically tagged (INJ 1, INJ 2, etc.) for injector position identification. If harness is not tagged, make note of wiring location before removal.
