INSULATOR, Engine Mount, Right: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

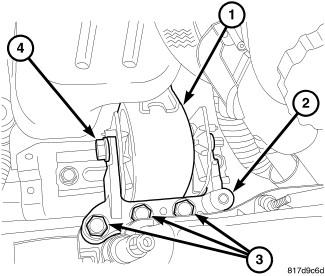

Fig 1: Right Engine Mount
GC0098721Courtesy of CHRYSLER LLC
  1. Position right engine mount (1).
  2. Install engine mount retaining bolts and tighten to 75 N.m (55 ft. lbs.).
  3. Install engine mount adapter (2) and tighten bolts (3) to 68 N.m (50 ft. lbs.).
  4. Install engine mount through bolt (4) and tighten to 88 N.m (65 ft. lbs.).

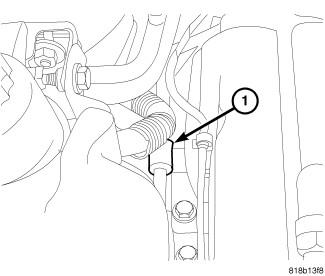

    Fig 2: Power Steering Line Support
    GC0098722Courtesy of CHRYSLER LLC
  5. Remove jack.
  6. Install power steering line support bracket (1) at engine mount.

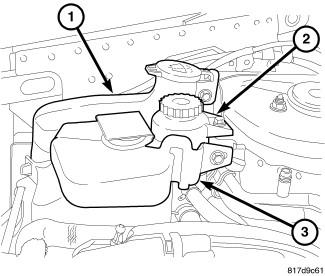

    Fig 3: Coolant Reservoir
    GC0098723Courtesy of CHRYSLER LLC
  7. Install windshield washer bottle (1).
  8. Install power steering reservoir (2).
  9. Install coolant reservoir (3).
  10. Install engine cover.
