Circuit Schematic

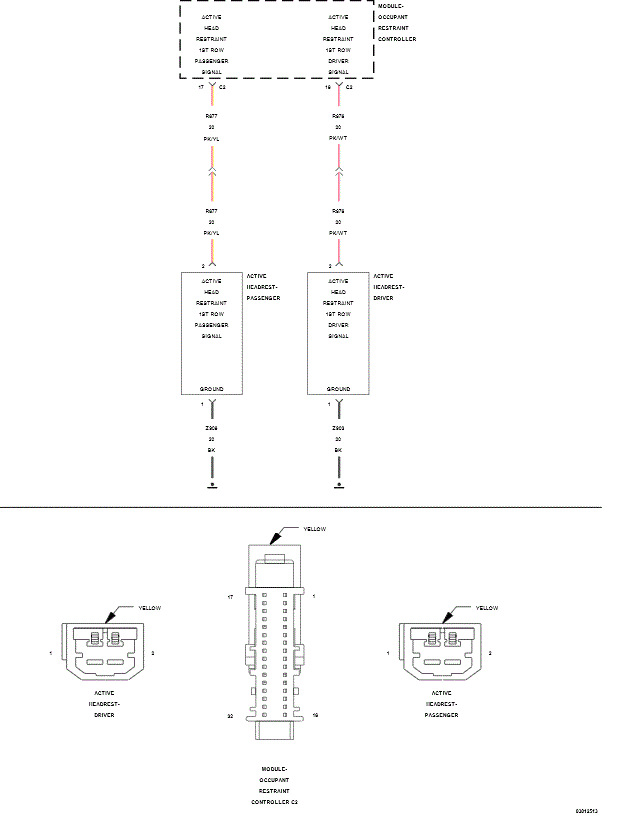

Fig 1: Active Headrests & ORC Module Circuit Schematic

GC0138203

Courtesy of CHRYSLER LLC
