TRANSDUCER, EGR Back Pressure: Removal: Removal

Fig 1: Identifying EGR Back Pressure Transducer Harness Connector

Courtesy of CHRYSLER LLC

1. Disconnect the negative battery cable.
2. Remove the engine cover.
3. Disconnect the EGR back pressure transducer harness connector (1).

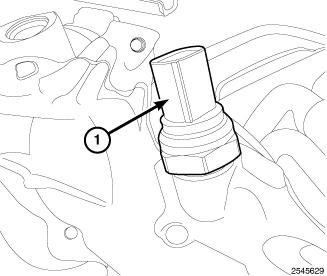

   Fig 2: Identifying EGR Back Pressure Transducer

   Courtesy of CHRYSLER LLC
4. Remove the EGR back pressure transducer (1).
