Power Distribution Center (PDC) Layout And Connector Identification

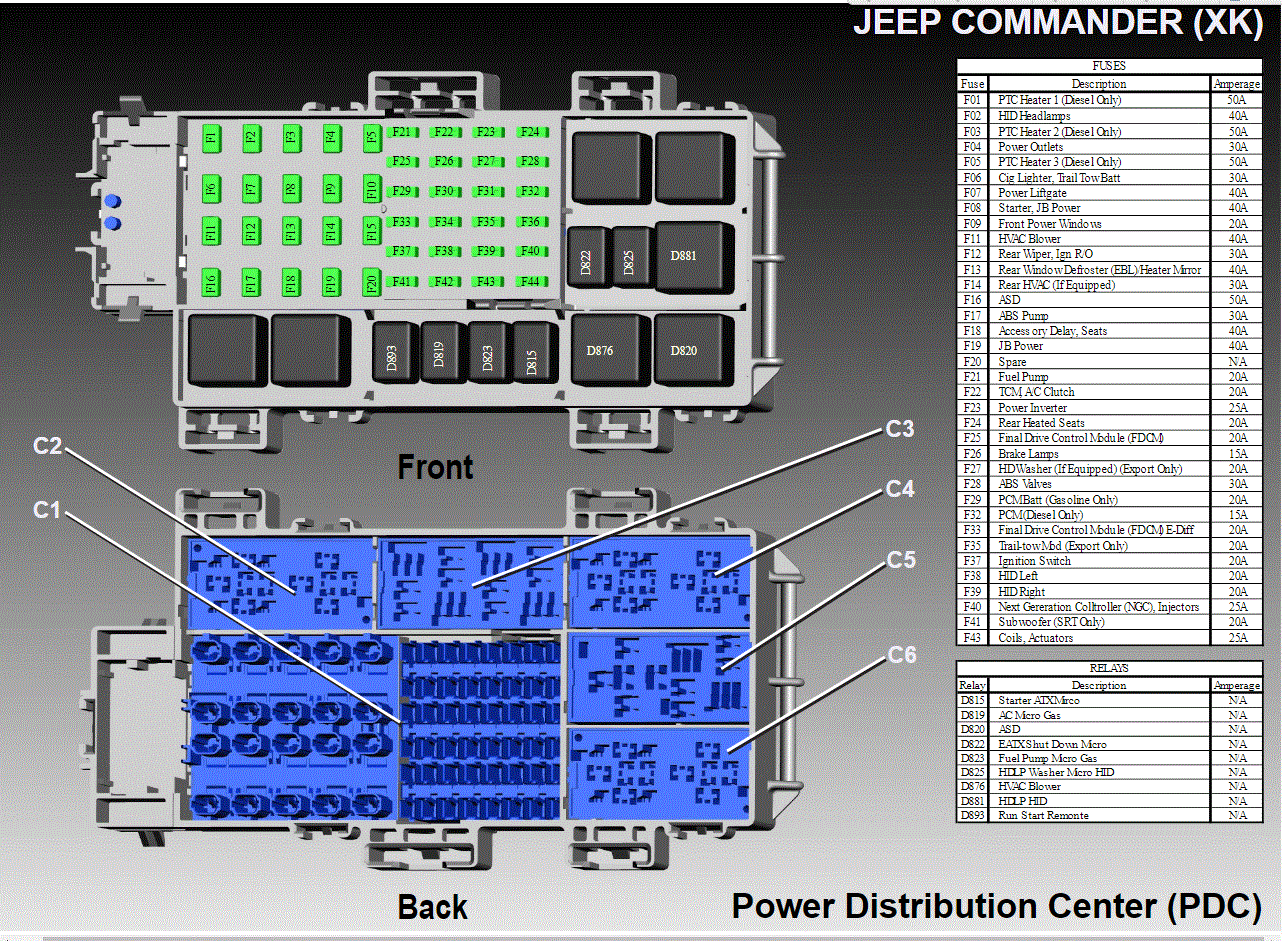

Fig 1: PDC Layout And Connector Identification

G00570515

Courtesy of CHRYSLER
