Windshield Washer Pump Connector End View

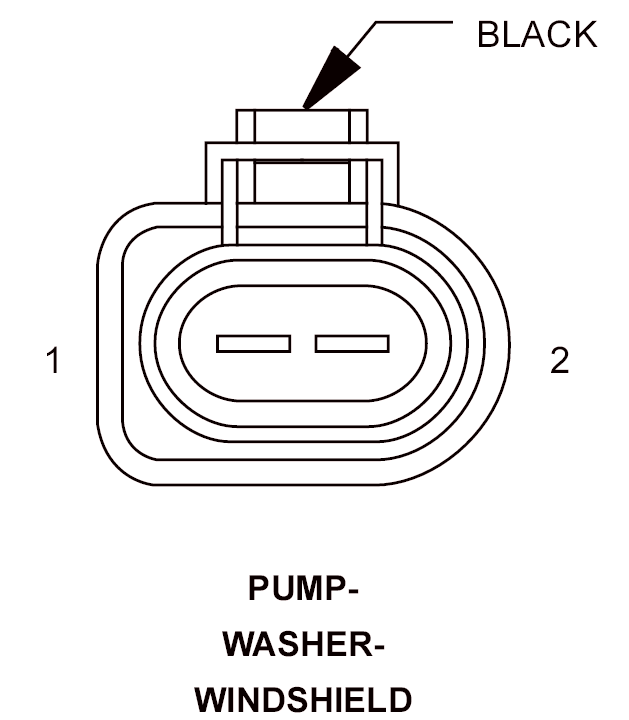

PUMP-WASHER-WINDSHIELD - BLACK 2 WAY

GJK880202Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 W20 14BR/YL REAR WASHER PUMP MOTOR CONTROL
2 W10 14BR FRONT WASHER PUMP MOTOR CONTROL
