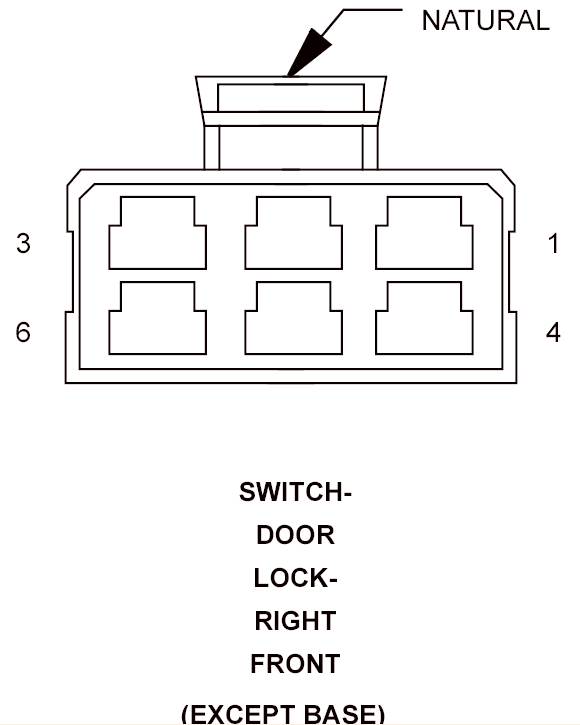

Right Front Door Lock Switch (Except Base) Connector End View
SWITCH-DOOR LOCK-RIGHT FRONT - NATURAL 6 WAY (EXCEPT BASE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G160 18VT/DG |
RIGHT DOOR LOCK SWITCH MUX |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
P37 18LG/TN |
DOOR LOCK SWITCH RETURN |
| 6 |
- |
- |
