Mass Air Flow Sensor (Diesel) Connector End View

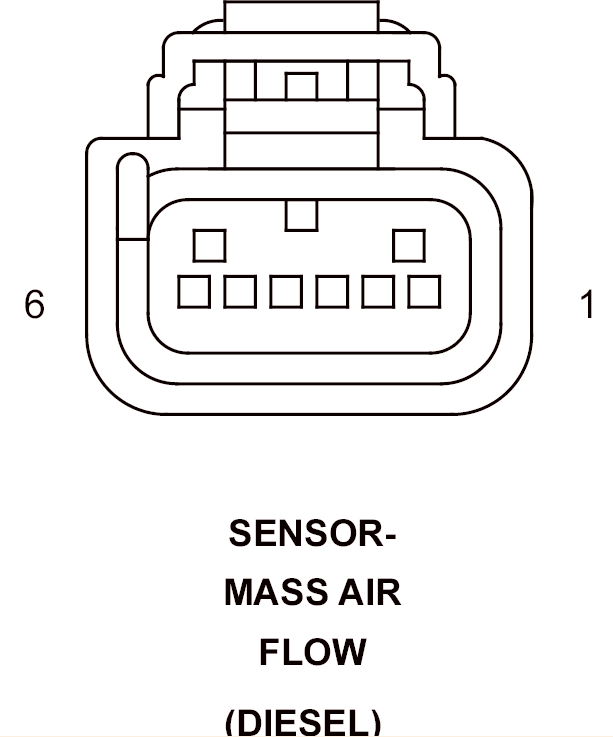

SENSOR-MASS AIR FLOW - 6 WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
F888 18BR/PK |
MAF 5 VOLT SUPPLY |
| 3 |
F344 18BR/GY |
FUSED ASD RELAY OUTPUT |
| 4 |
- |
- |
| 5 |
K957 20BK/OR |
MAF SENSOR GROUND |
| 6 |
K157 20BR/OR |
MAF SIGNAL |
