Left Front Fog Lamp Connector End View

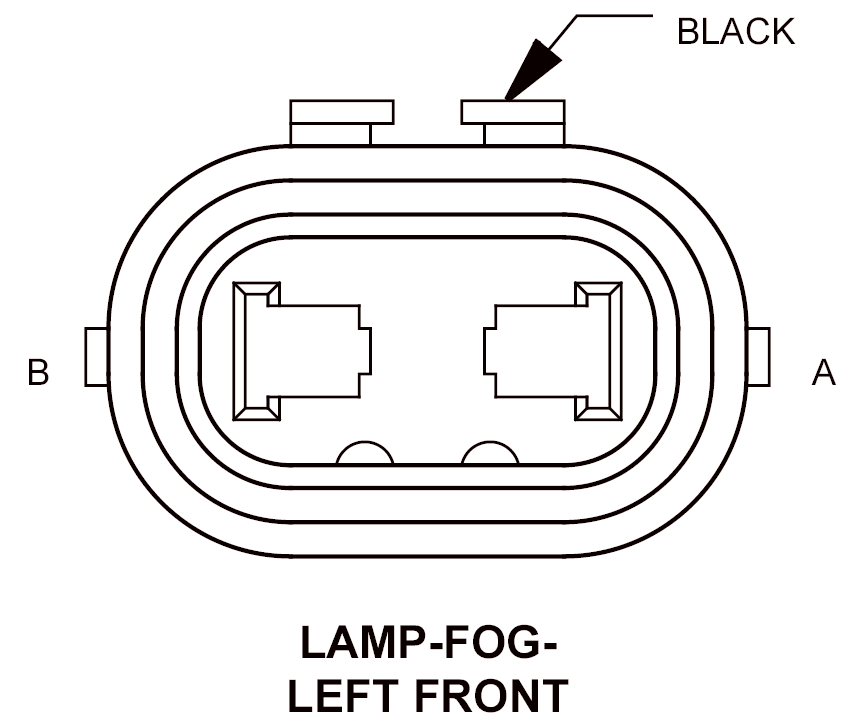

LAMP-FOG-LEFT FRONT - BLACK 2 WAY

GJK880133Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A Z905 18BK GROUND
B L89 18WT/YL LEFT FRONT FOG LAMP CONTROL
