Generator (Gas) Connector End View

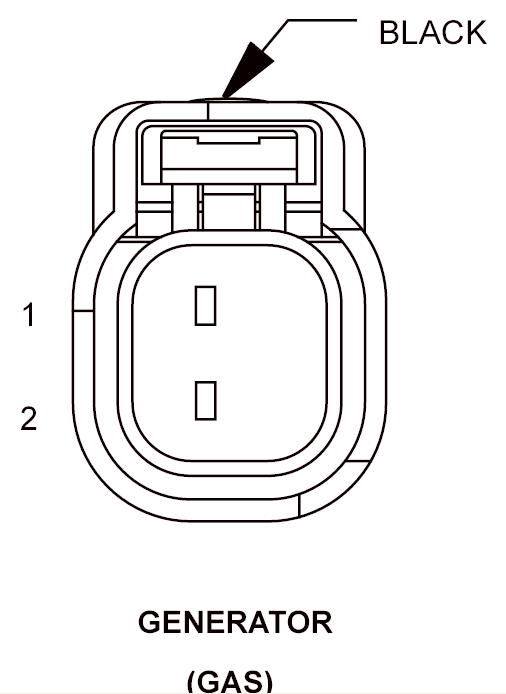

GENERATOR - BLACK 2 WAY (GAS)

GJK880111Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K125 18BR/GY GEN FIELD CONTROL
2 A804 16RD/GY GEN SENSE

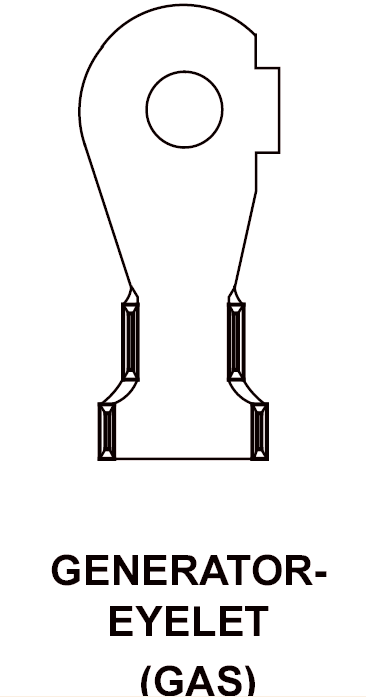

GENERATOR-EYELET - 1 WAY (GAS)

GJK880113Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A801 6RD/GY FUSED B(+)
