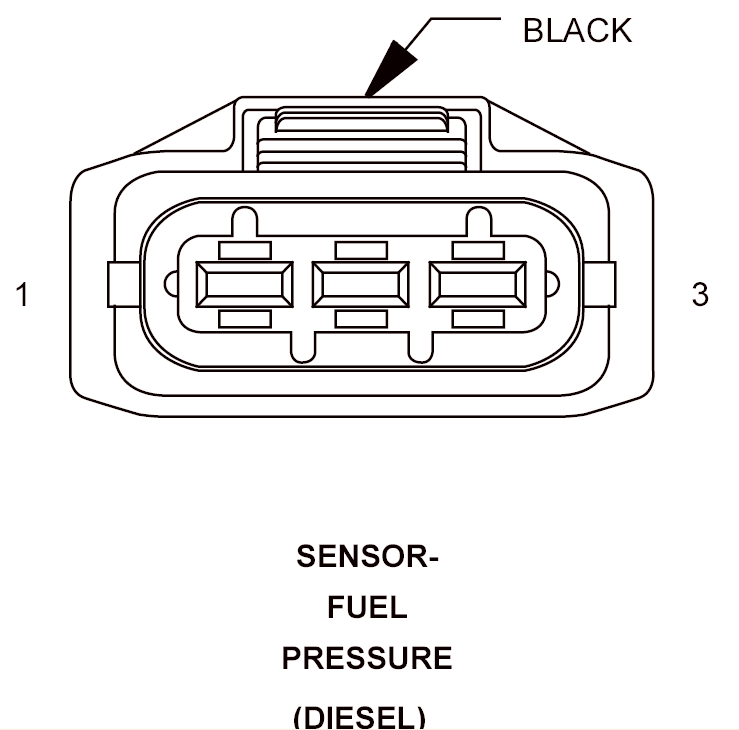

Fuel Pressure Sensor (Diesel) Connector End View
SENSOR-FUEL PRESSURE - BLACK 3 WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K359 16YL/BR |
FUEL PRESSURE SENSOR GROUND |
| 2 |
K181 16BR/YL |
FUEL PRESSURE SIGNAL |
| 3 |
K350 16BR/YL |
FUEL PRESSURE 5 VOLT SUPPLY |
