Engine Coolant Temperature Sensor (Diesel) Connector End View

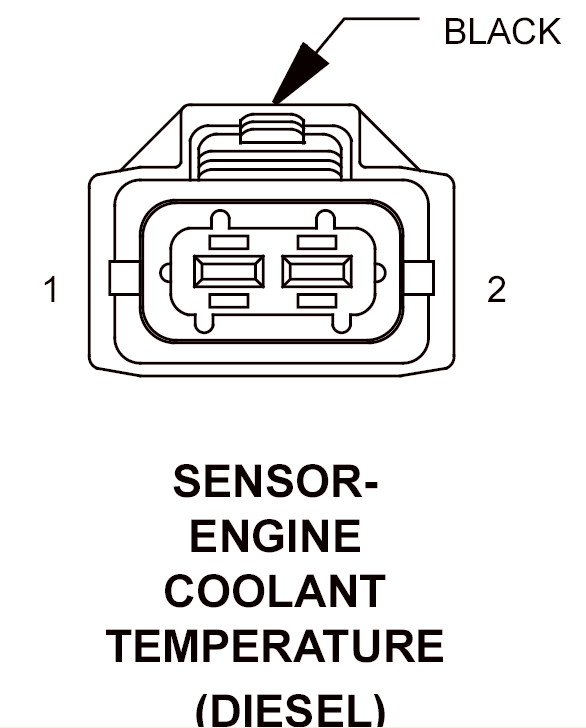

SENSOR-ENGINE COOLANT TEMPERATURE - BLACK 2 WAY (DIESEL)

GJK880222Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K2 18VT/OR ECT SIGNAL
2 K914 18BR/WT SENSOR GROUND
