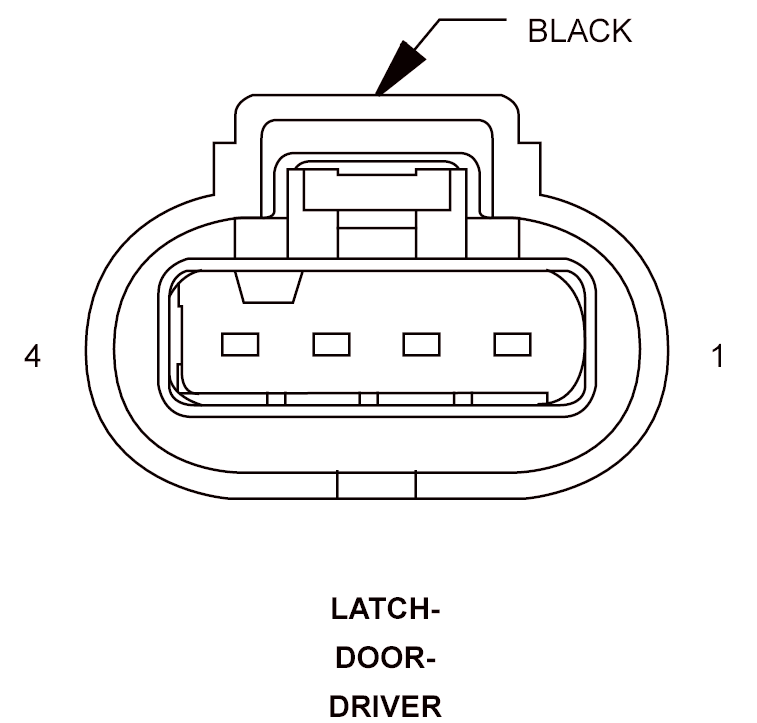

Driver Door Latch Connector End View
LATCH-DOOR-DRIVER - BLACK 4 WAY MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P910 18TN/LG |
DRIVER DOOR UNLOCK DRIVER (EXCEPT BASE) |
| 2 |
P930 18TN/WT |
DRIVER DOOR LOCK DRIVER (EXCEPT BASE) |
| 3 |
G75 18VT |
DRIVER DOOR AJAR SWITCH SENSE |
| 4 |
Z910 18BK/WT |
GROUND |
