A/C Compressor Clutch Connector End View

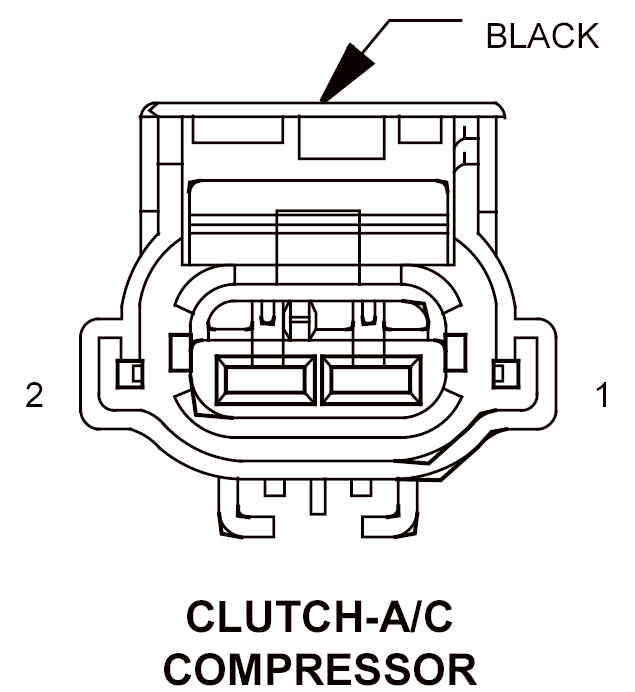

CLUTCH-A/C COMPRESSOR - BLACK 2 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C3 20DB/YL |
A/C CLUTCH CONTROL OUTPUT (A/T) |
| 1 |
C3 18DB/YL |
A/C CLUTCH CONTROL OUTPUT (M/T) |
| 2 |
Z906 20BK |
GROUND (A/T) |
| 2 |
Z906 18BK |
GROUND (M/T) |
