Home >> Jeep >> 2009 >> Wrangler X, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0652 To P1696 - NGC >> P0850-Park/Neutral Switch Performance >> Notes

P0850-Park/Neutral Switch Performance: Notes

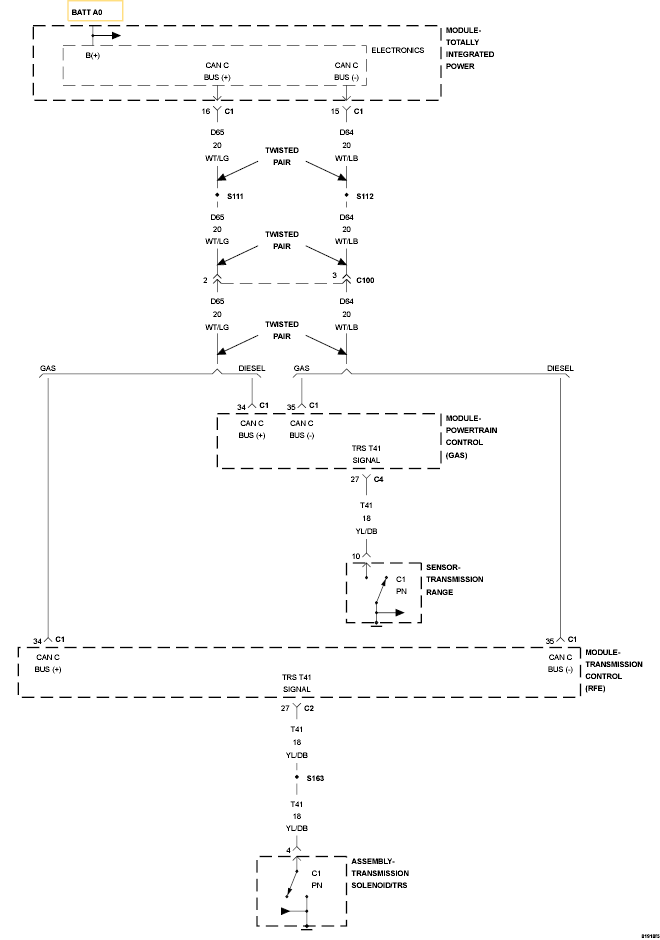

Fig 1: Park/Neutral Switch Circuit

GC0131937

Courtesy of CHRYSLER LLC
