P0206-Fuel Injector 6 Circuit: Notes

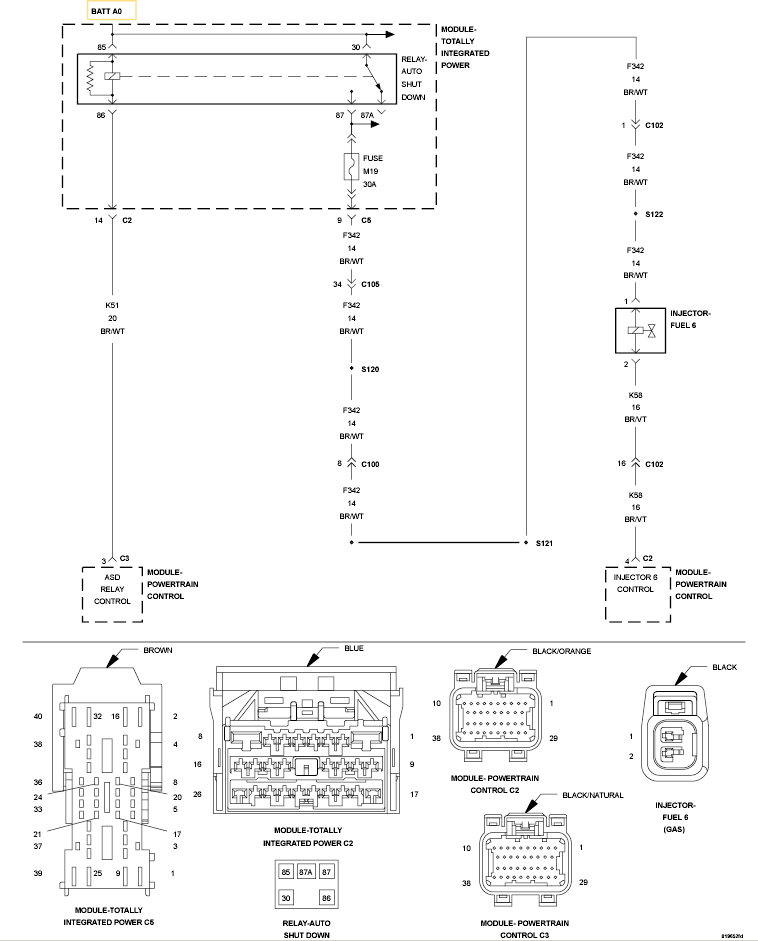

Fig 1: Fuel Injector Circuit

GC0131890

Courtesy of CHRYSLER LLC
