P0201-Fuel Injector 1 Circuit: Notes

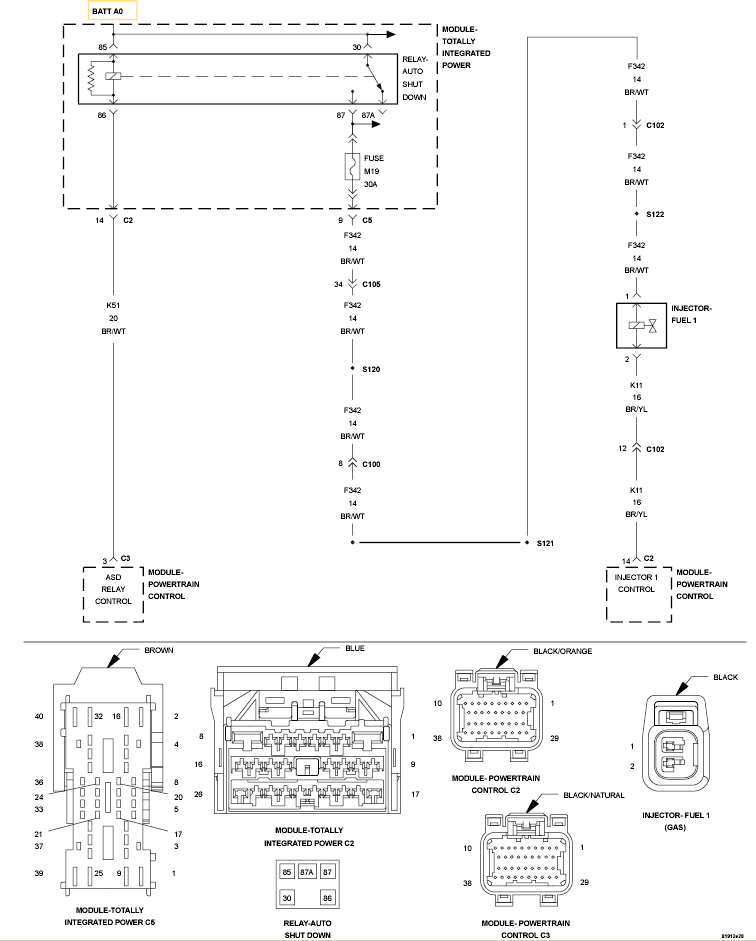

Fig 1: Fuel Injector 1 Circuit

GC0131885

Courtesy of CHRYSLER LLC
