Home >> Jeep >> 2009 >> Wrangler X, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0016 To P0129 - NGC >> P0072-Ambient Air Temperature Sensor Circuit Low >> Notes

P0072-Ambient Air Temperature Sensor Circuit Low: Notes

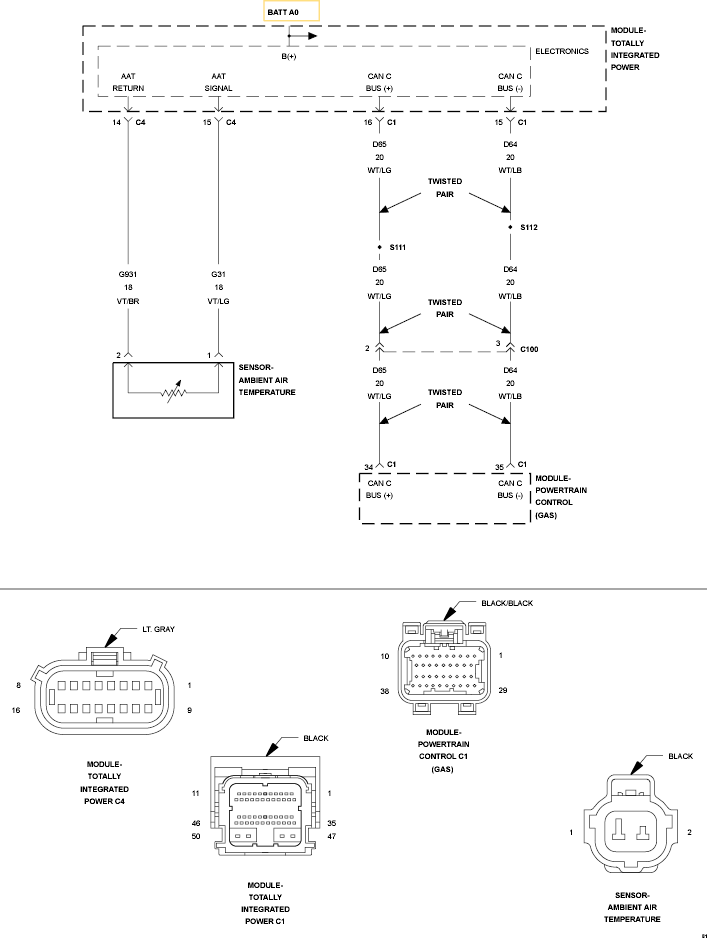

Fig 1: Ambient Air Temperature Sensor Circuit

GC0131880

Courtesy of CHRYSLER LLC
