Home >> Jeep >> 2009 >> Wrangler X, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Intrusion Transceiver Module (ITM) - Electrical Diagnostics >> DTC Troubleshooting >> U1008-Lin 1 Bus >> Circuit Schematic

Circuit Schematic

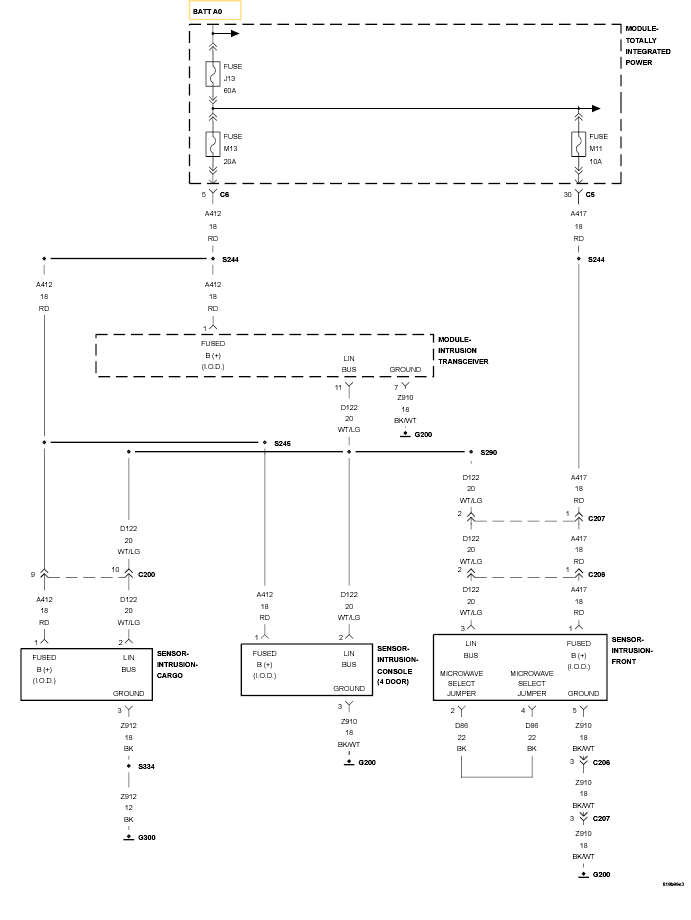

Fig 1: Intrusion Sensors Circuit Schematic

GC0131857

Courtesy of CHRYSLER LLC
