ASSEMBLY, Input Clutch: Assembly: Assembly

Use petrolatum on all seals to ease assembly of components.

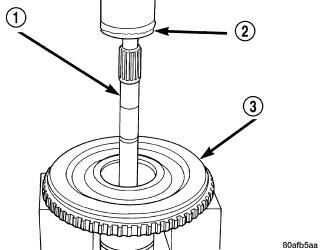

Fig 1: Install Input Shaft

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - ARBOR PRESS RAM

3 - INPUT CLUTCH HUB

Using an arbor press (2), install input shaft (1) to input shaft hub (3) .

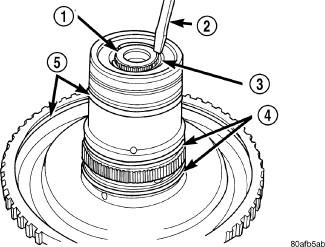

Fig 2: Install Input Shaft Snap Ring

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - SCREWDRIVER (DO NOT SCRATCH BEARING SURFACE)

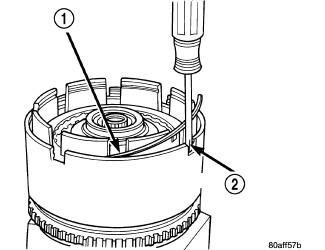

3 - SNAP RING

4 - O-RINGS

5 - SEALS

Install input shaft snap ring (3) .

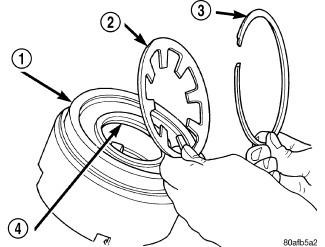

Fig 3: Return Spring and Snap Ring

Courtesy of CHRYSLER LLC

1 - OD/REVERSE PISTON

2 - RETURN SPRING

3 - SNAP RING

4 - O-RING

Position the OD/Reverse piston return spring (2) and snap ring (3) onto the OD/Reverse piston (1) .

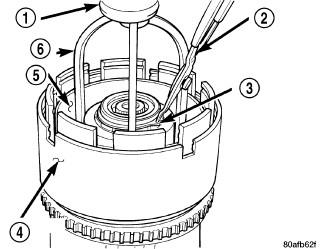

Fig 4: Remove/Install Snap Ring

Courtesy of CHRYSLER LLC

1 - ARBOR PRESS RAM (COMPRESS RETURN SPRING JUST ENOUGH TO REMOVE OR INSTALL SNAP RING)

2 - SCREWDRIVER

3 - SNAP RING

4 - SPECIAL TOOL 6057

5 - OD/REVERSE PISTON

6 - RETURN SPRING

Using an arbor press (1) and Disc 6057 (4), install the OD/Reverse piston return spring (6) and snap ring (3) .

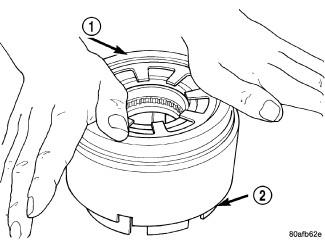

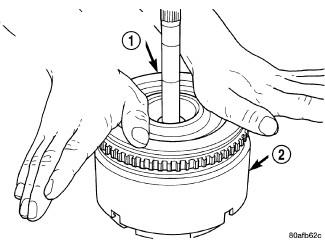

Fig 5: Install OD/Reverse Piston
Courtesy of CHRYSLER LLC

1 - PUSH DOWN TO INSTALL OVERDRIVE/REVERSE PISTON

2 - INPUT CLUTCHES RETAINER

Install the OD/Reverse piston (1) assembly to the input clutch retainer (2) .

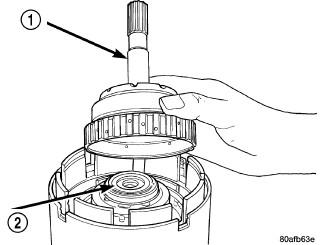

Fig 6: Install Input Shaft Hub Assembly

Courtesy of CHRYSLER LLC

1 - PUSH DOWN TO INSTALL INPUT SHAFT HUB ASSEMBLY (ROTATE TO ALIGN SPLINES)

2 - OD/REV. PISTON

Install the input hub/shaft assembly (1) to the OD/Reverse piston/clutch retainer assembly (2) .

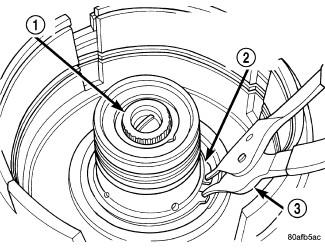

Fig 7: Install Input Hub Tapered Snap Ring

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - INPUT HUB SNAP RING (TAPERED SIDE UP WITH TABS IN CAVITY)

3 - SNAP RING PLIERS

Install input hub tapered snap ring (2) . Make sure snap ring is fully seated.

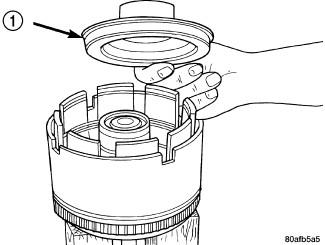

Fig 8: Underdrive Clutch Piston
Courtesy of CHRYSLER LLC

1 - PISTON

Install the UD clutch piston (1) .

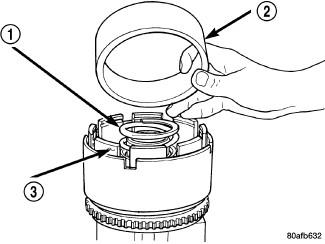

Fig 9: Seal Compressor Special Tool 5067

Courtesy of CHRYSLER LLC

1 - PISTON RETURN SPRING

2 - SPECIAL TOOL 5067

3 - INPUT CLUTCH RETAINER

Install UD piston return spring (1) and Disc 5067 (2) .

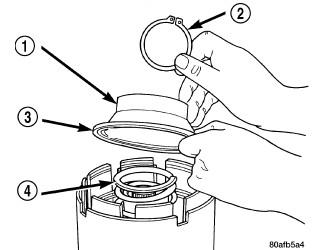

Fig 10: UD Return Spring and Retainer

Courtesy of CHRYSLER LLC

1 - UNDERDRIVE SPRING RETAINER

2 - SNAP RING

3 - SEAL

4 - PISTON RETURN SPRING

Position the UD spring retainer (1) and snap ring (2) on the piston return spring (4) .

Fig 11: Install UD Spring Retainer and Snap Ring

Courtesy of CHRYSLER LLC

1 - ARBOR PRESS RAM

2 - SNAP RING PLIERS

3 - SNAP RING

4 - OD/REVERSE PISTON

5 - TOOL 5067

6 - TOOL 5059-A

CAUTION: Compress return spring just enough to install snap ring.

Using Compressor 5059-A (6) with Installer 5067 (5) and an arbor press (1), install the UD spring retainer and snap ring (3) .

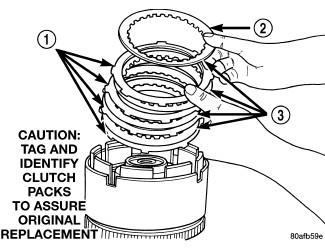

Fig 12: Underdrive Clutch Pack

Courtesy of CHRYSLER LLC

1 - CLUTCH PLATE

2 - ONE UD CLUTCH DISC

3 - CLUTCH DISC

Install the UD clutch pack (four fibers/four steels) (1, 3) . Leave the top disc (2) out until after the snap ring is installed.

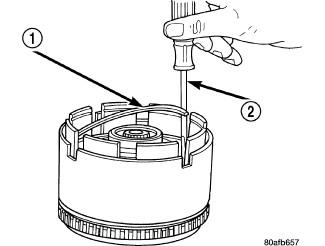

Fig 13: UD Clutch Flat Snap Ring
Courtesy of CHRYSLER LLC

1 - UNDERDRIVE CLUTCH REACTION PLATE FLAT SNAP RING

2 - SCREWDRIVER
Install the UD clutch flat snap ring (1) .

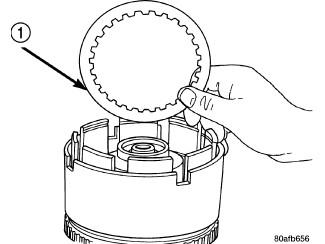

Fig 14: Remove/Install Last UD Clutch Disc
Courtesy of CHRYSLER LLC

1 - ONE UNDERDRIVE CLUTCH DISC
Install the last UD clutch disc (1) .

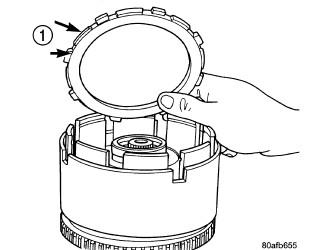

Fig 15: OD/UD Reaction Plate
Courtesy of CHRYSLER LLC

1 - OD/UD CLUTCH REACTION PLATE (STEP SIDE DOWN)

Install the OD/UD clutch reaction plate (1) . The OD/UD clutches reaction plate has a step on both sides. Install the OD/UD clutches reaction plate tapered step side up.

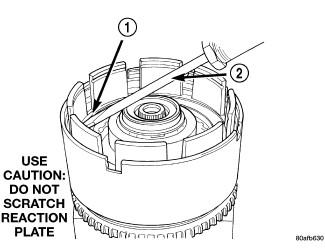

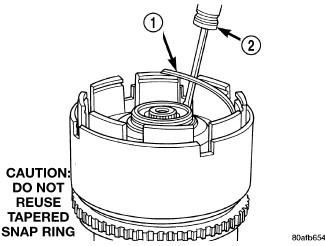

Fig 16: Tapered Snap Ring

Courtesy of CHRYSLER LLC

1 - OVERDRIVE/UNDERDRIVE CLUTCHES REACTION PLATE TAPERED SNAP RING

2 - SCREWDRIVER (DO NOT SCRATCH REACTION PLATE)

NOTE: Snap ring ends must be located within one finger of the input clutch hub. Be sure that snap ring is fully seated, by pushing with screwdriver, into snap ring groove all the way around.

Install the UD/OD tapered snap ring (1) .

Fig 17: Seating Tapered Snap Ring

Courtesy of CHRYSLER LLC

1 - OVERDRIVE/UNDERDRIVE CLUTCHES REACTION PLATE TAPERED SNAP RING

2 - SCREWDRIVER

Seat tapered snap ring (1) to ensure proper installation.

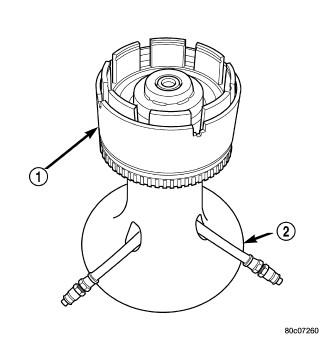

Fig 18: Input Clutch Assembly on Pressure Fixture Tool - 8391
Courtesy of CHRYSLER LLC

1 - INPUT CLUTCH ASSEMBLY

2 - INPUT CLUTCH PRESSURE FIXTURE - 8391
Install input clutch assembly (1) to the Input Clutch Pressure Fixture 8391 (2).

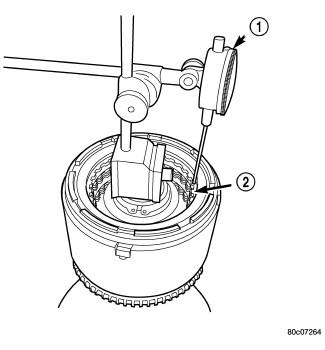

Fig 19: Set Up Dial Indicator to Measure UD Clutch Clearance
Courtesy of CHRYSLER LLC

1 - DIAL INDICATOR

2 - UNDERDRIVE CLUTCH
Set up Dial Indicator C-3339A (1) on the UD clutch pack (2).

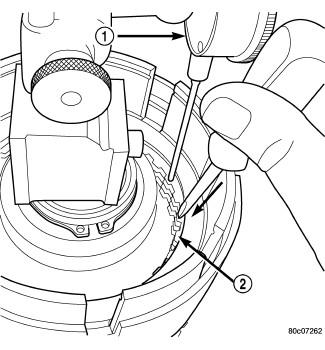

Fig 20: Press Down on UD Clutch Pack and Zero Dial Indicator
Courtesy of CHRYSLER LLC

1 - DIAL INDICATOR

2 - UNDERDRIVE CLUTCH
Using moderate pressure, press down and hold (near indicator) the UD clutch pack (2) with screwdriver or suitable tool and zero dial indicator (1) . When releasing pressure on clutch pack, indicator reading should advance 0.005-0.010 inches.
CAUTION: Do not apply more than 30 psi (206 kPa) to the underdrive clutch pack.
Apply 30 psi (206 kPa) to the underdrive hose on Pressure Fixture 8391 and measure UD clutch clearance. Measure and record UD clutch pack measurement in four (4) places, 90° apart.
Take average of four measurements and compare with UD clutch pack clearance specification. Underdrive clutch pack clearance must be 0.94-1.50 mm (0.037-0.059 in.).
If necessary, select the proper reaction plate to achieve specifications.

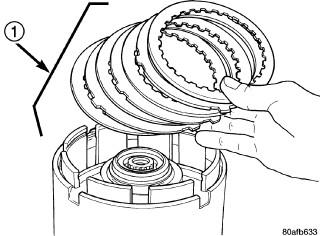

Fig 21: Install OD Clutch Pack
Courtesy of CHRYSLER LLC

1 - OVERDRIVE CLUTCH PACK
Install the OD clutch pack (four fibers/three steels) (1) .

Fig 22: Install Waved Snap Ring
Courtesy of CHRYSLER LLC

1 - OVERDRIVE REACTION PLATE WAVED SNAP RING

2 - SCREWDRIVER
Install OD reaction plate waved snap ring (1) .

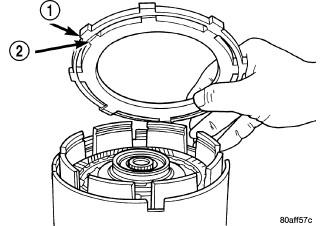

Fig 23: OD/Reverse Reaction Plate
Courtesy of CHRYSLER LLC

1 - OVERDRIVE/REVERSE PRESSURE PLATE

2 - (STEP SIDE DOWN)

Install the OD/Reverse reaction plate (1) with large step down (towards OD clutch pack) .

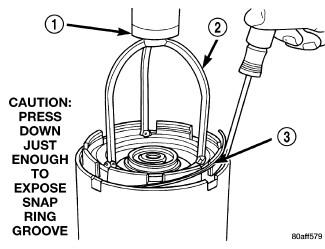

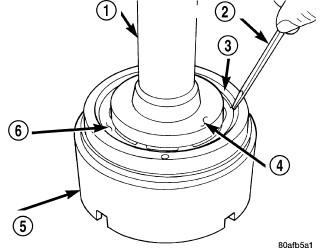

Fig 24: Install Flat Snap Ring

Courtesy of CHRYSLER LLC

1 - ARBOR PRESS RAM

2 - TOOL 5059-A

3 - FLAT SNAP RING

Install Compressor tool 5059-A (2).
Using shop press (1) compress clutch pack enough to expose snap ring grove.
Install OD reaction plate flat snap ring (3) .

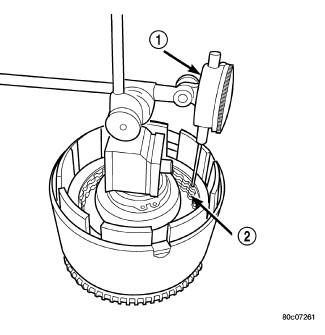

Fig 25: Measure OD Clutch Pack Clearance
Courtesy of CHRYSLER LLC

1 - DIAL INDICATOR

2 - OD/REVERSE PRESSURE PLATE
Measure OD clutch pack clearance. Set up Dial Indicator C-3339A (1) on top of the OD/Reverse reaction plate (2).
Zero dial indicator and apply 30 psi (206 kPa) air pressure to the overdrive clutch hose on Pressure Fixture 8391. Measure and record OD clutch pack measurement in four (4) places, 90° apart.
Take average of four measurements and compare with OD clutch pack clearance specification. The overdrive (OD) clutch pack clearance is 1.07-3.25 mm (0.042-0.128 in.).

If not within specifications, the clutch is not assembled properly. There is no adjustment for the OD clutch clearance.

Install reverse clutch pack (two fibers/one steel) (1, 2).

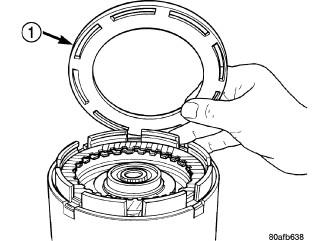

Fig 26: Install Reaction Plate
Courtesy of CHRYSLER LLC

1 - REVERSE CLUTCH REACTION PLATE (FLAT SIDE DOWN)

Install reverse clutch reaction plate (1) with the flat side down towards reverse clutch .

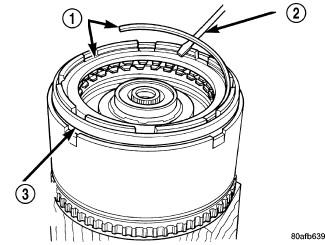

Fig 27: Install Reverse Clutch Snap Ring

Courtesy of CHRYSLER LLC

1 - REVERSE CLUTCH SNAP RING (SELECT)

2 - SCREWDRIVER

3 - REVERSE CLUTCH REACTION PLATE

Tap reaction plate (3) down to allow installation of the reverse clutch snap ring (1). Install reverse clutch snap ring (1).

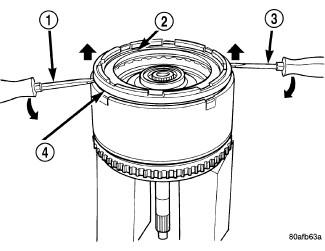

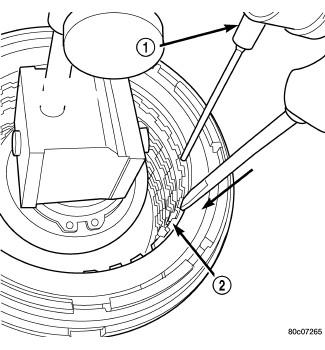

Fig 28: Pry Up Reaction Plate

Courtesy of CHRYSLER LLC

1 - SCREWDRIVER

2 - SNAP RING

3 - SCREWDRIVER

4 - MUST RAISE REVERSE REACTION PLATE TO RAISE SNAP RING

Pry up reverse reaction plate (4) to seat against snap ring (2).

Fig 29: Measure Reverse Clutch Pack Clearance
Courtesy of CHRYSLER LLC

1 - DIAL INDICATOR

2 - REVERSE CLUTCH
Set up a Dial Indicator C-3339A (1) on the reverse clutch pack (2).

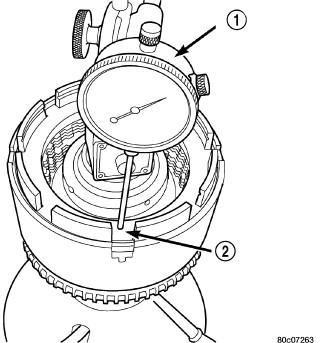

Fig 30: Press Down on Reverse Clutch and Zero Indicator
Courtesy of CHRYSLER LLC

1 - DIAL INDICATOR

2 - REVERSE CLUTCH
Using moderate pressure, press down and hold (near indicator) reverse clutch disc (2) with screwdriver or suitable tool and zero dial indicator (1). When releasing pressure, indicator should advance 0.005-0.010 inches as clutch pack relaxes.
Apply 30 psi (206 kPa) air pressure to the reverse clutch hose on Pressure Fixture 8391. Measure and record reverse clutch pack measurement in four (4) places, 90° apart.
Take average of four measurements and compare with reverse clutch pack clearance specification. The reverse clutch pack clearance is 0.89-1.37 mm (0.035-0.054 in.). Select the proper reverse clutch snap ring to achieve specifications.
To complete the assembly, reverse clutch and overdrive clutch must be removed.

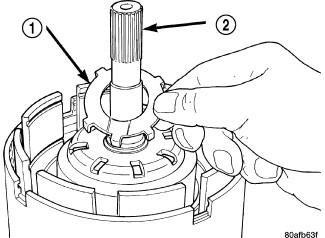

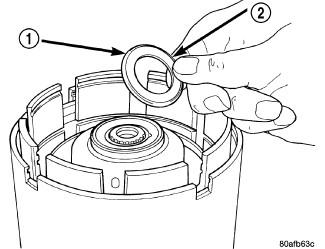

Fig 31: Install No. 2 Needle Bearing
Courtesy of CHRYSLER LLC

1 - #2 NEEDLE BEARING (NOTE 3 SMALL TABS)

2 - TABS UP
Install the number 2 needle bearing (1) .

Fig 32: Install Underdrive Shaft Assembly
Courtesy of CHRYSLER LLC

1 - UNDERDRIVE SHAFT ASSEMBLY

2 - #2 NEEDLE BEARING
Install the underdrive shaft assembly (1) .

Fig 33: Install No. 3 Thrust Washer
Courtesy of CHRYSLER LLC

1 - #3 THRUST WASHER (NOTE 5 TABS)

2 - UNDERDRIVE SHAFT ASSEMBLY

Install the number 3 thrust washer (1) to the underdrive shaft assembly (2). Be sure five tabs are seated properly.

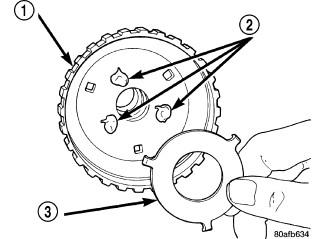

Fig 34: Install No. 3 Thrust Plate

Courtesy of CHRYSLER LLC

1 - OVERDRIVE SHAFT ASSEMBLY

2 - DABS OF PETROLATUM (FOR RETENTION)

3 - #3 THRUST PLATE (NOTE 3 TABS)

Install the number 3 thrust plate (3) to the bottom of the overdrive shaft assembly (1). Retain with petrolatum or transmission assembly gel (2).

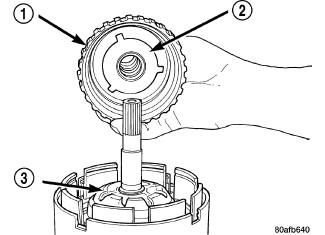

Fig 35: Install Overdrive Shaft Assembly

Courtesy of CHRYSLER LLC

1 - OVERDRIVE SHAFT ASSEMBLY

2 - #3 THRUST PLATE

3 - #3 THRUST WASHER

Install the overdrive shaft assembly (1).

Fig 36: Input Clutch Assembly
Courtesy of CHRYSLER LLC

1 - INPUT CLUTCH ASSEMBLY

2 - OVERDRIVE SHAFT ASSEMBLY
Reinstall overdrive and reverse clutch. Rechecking these clutch clearances is not necessary.
