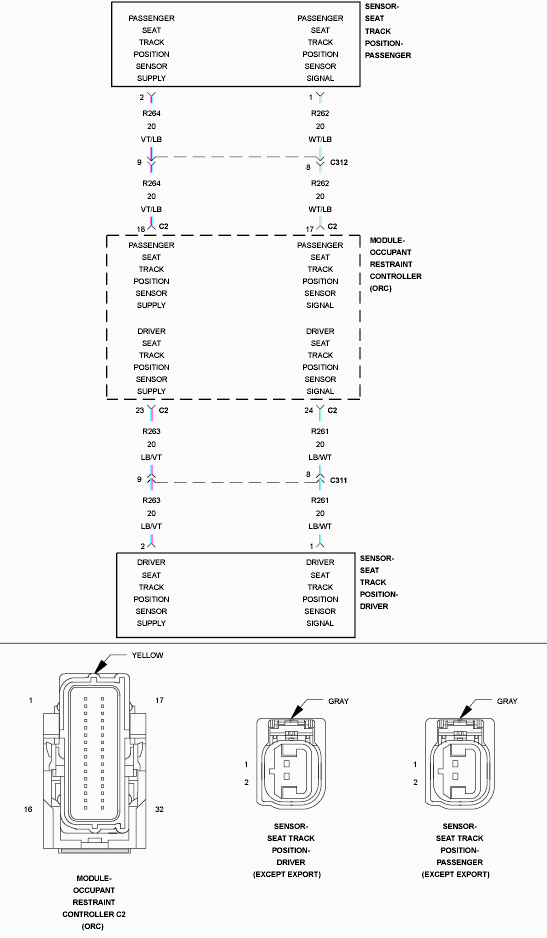

Home >> Jeep >> 2009 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Air Bag Restraint System - Electrical Diagnostics >> DTC Troubleshooting >> B1B8F-Driver Seat Track Position Sensor Circuit Open >> Circuit Schematic
