Left Front Tweeter Speaker Connector End View

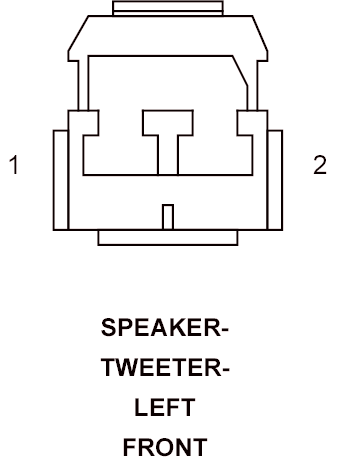

SPEAKER-TWEETER-LEFT FRONT - 2 WAY

GKK880358Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 X201 18GY/VT AMPLIFIED LEFT I/P SPEAKER (+)
2 X291 18GY/YL AMPLIFIED LEFT I/P SPEAKER (-)
