Circuit Schematic

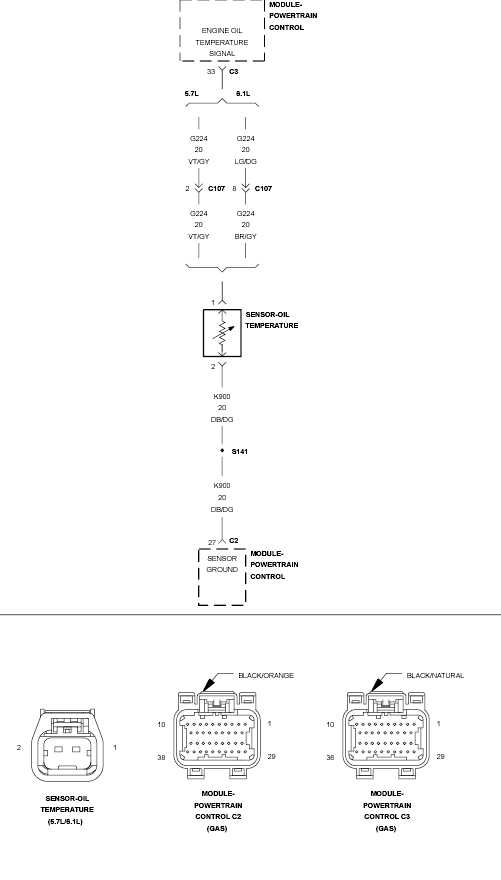

Fig 1: Engine Oil Temperature Sensor Circuit Schematic

GC0120356

Courtesy of CHRYSLER LLC
