Continuously Variable Transmission (CVT) (Service Information): Differential: Disassembly: Disassembly

Fig 1: Pin Punch At Roll Pin

Courtesy of CHRYSLER LLC

1. Remove the roll pin using a pin punch (1).
   Fig 2: Pinion Shaft Roll Pin

   Courtesy of CHRYSLER LLC
2. Discard the old roll pin (3).
   Fig 3: Pinion Shaft

   Courtesy of CHRYSLER LLC
3. Remove the pinion shaft (2) and inspect for excessive ware.
   Fig 4: Pinion Gear Shim

   Courtesy of CHRYSLER LLC
4. Roll the pinion gears (3) and shims (1) out of the carrier (2).
5. Remove the pinion gear shims (1) and mark for installation.

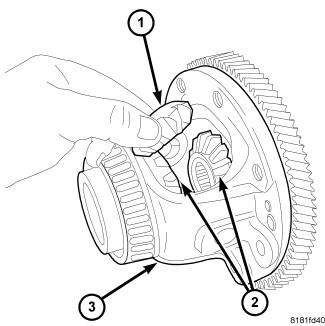

   Fig 5: Pinion Gears

   Courtesy of CHRYSLER LLC
6. Remove the pinion gears (1) from the carrier (3).
   Fig 6: Side Gears

   Courtesy of CHRYSLER LLC
7. Remove the side gears (2) and shims (3) from the carrier.

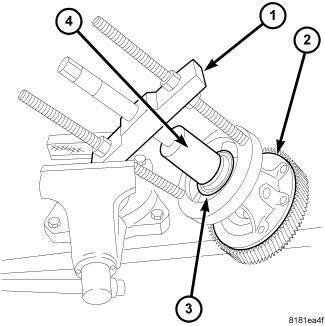

   Fig 7: Small Bearing

   Courtesy of CHRYSLER LLC
8. If the vehicle is a two wheel drive remove the carrier bearings using Puller C-293 PA, six Inserts C-293-40 and Press Insert C-4996.

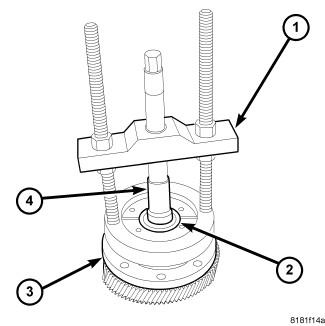

   Fig 8: Large Bearing

   Courtesy of CHRYSLER LLC
9. If all wheel drive use Puller C-293 PA, six 9613 Inserts and Insert 8888 to remove the carrier bearings.
