SEAL, Input Shaft: Installation: Installation

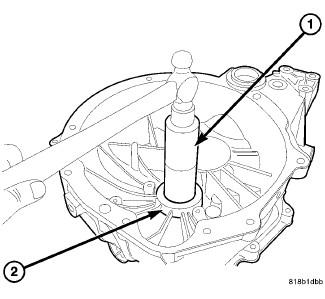

Fig 1: Input Shaft Seal
GC0082680Courtesy of CHRYSLER LLC
  1. Install input shaft seal (2) using installer 8864 (1).
  2. Install the transaxle. See Installation  .
